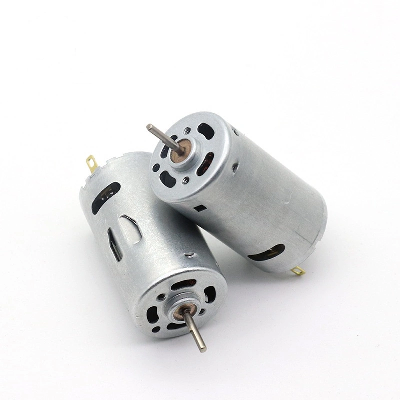

22mm Mini Gearbox Actuator Geared Motor 12V 24V DC

We are a factory specialized in metal parts hardware & metal gearbox geared motor through powder metallurgy process .We services with ODM/OEM gearbox design and development , gearmotors manufacture.A planetary gearbox is a gearbox with the input shaft and output shaft aligned it offers high torque transmission with good stiffness and low noise , in a more compact foot print than other gearbox types . It can supply a lot of speed reduction and torque in a small package with the fixed axis .A planetary gear set is made up of three types of gears , a sun gear , planet gears and a ring gear . The sun gear at high speed is located at the center of the gears , and transmits torque to the planet gears which are typically mounted on the moveable carrier .The planet gears around the central axis rotation ,mesh with the sun gear and an outer ring gear . As all the planet carriers turns , it delivers low-speed, high-torque output .Description:Product Name : 36mm low speed high torque planet gearbox gear motor / Speed reducerGearbox Type: Planetary10mm small geared motorNo Load Speed: 20-4318 rpmRated Load Speed: 18-3625 rpmNo-load Current: 60-80 mA 16mm small gear boxes:No-load Speed: 4-1,373 rpmRated Load Speed: 3-1,125 rpmNo-load Current: 85-110 mARated Load Current: 130-150 mA20mm gearboxes :No-load Speed: 7-1,636 rpmRated Load Speed: 7-1,420 rpmNo-load Current: 70-90 mARated Load Current: 125-130 mA24mm brush gear system:No-load Speed: 5-1,460 rpmRated Load Speed: 4-1,259 rpmNo-load Current: 70-80 mARated Load Current: 215-220 mA 36mm micro geared motors:No-load Speed: 3-1,386 rpmRated Load Speed: 3-1,294 rpmNo-load Current: 315-335 mARated Load Current: 1,679-1,684 mA Material: Steel Gear Ratio : 5:1 , 10:1 , 20:1 , 25:1 , 30:1 , 40:1 , 50:1 , 60:1 ,70:1…100:1...  optionalGearbox diameter : 6mm , 8mm , 12mm , 16mm , 22mm , 24mm ,28mm, 32mm ,36mm, 38mm , 42mm ......3V , 6V ,12V ,24V available .Treatment:Carburizing, carbonitriding, brilliant quenchingPlanetary Gearbox advantages:2, 3 or 4 reduction stages for both coaxial and right angle shaft Wide range of accessories and non-standard designsVery compact size and reduced mass of gearboxModular design, with multi-optional executions   PM process for custom metal planetary gearbox , geared motors .The P/M process is an economical, environmentally clean, high production method for making parts exactly to or close to final dimensions.  With little or no machining operations required.At present, parts with a complicated shape, tight-dimensional tolerances, controlled density and properties can be manufactured by powder metallurgy methods. A technological process of powder metallurgy ensures high flexibility in the selection of physiochemical properties and other requirements, including:Production of structural parts with complex shapes .Controlled porosity .High mechanical strength and resistance to vibrations .Controlled properties.High mechanical strength and resistance to vibrations.High manufacturing precision and good surface quality Large number of production series . Good tolerances .Application:monitor,automatic vending machine,automatic cruise control,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster,printers,conditioning damper actuator,Car tail gate electric putter,tooth brush,vibrator, sanitary ware,coffee machine,Sweeping robot,etc.  Custom geared motors , planet gears , metal gearbox       /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
