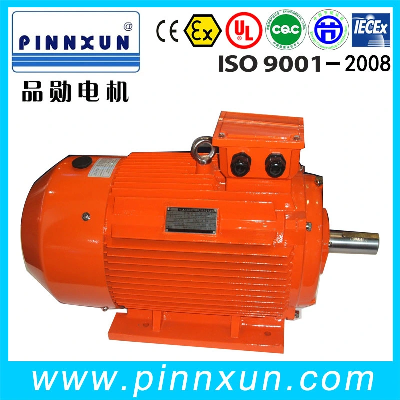

Ye2 Series Teco Electric Motor Ie2 300kw

Product: YX3 YE2 series(IE2) High efficiency motor Feature and usage Ye2/YX3 series high efficiency three phase motors is high efficiency energy-saving motor. Efficiency index of motor reachedGB18613'middle-small motor efficiency limited value and efficiency grade'grade 2 efficiency standard, according to IE2/EFF1 efficiency index of IEC standard. Our production advance in domestic and reached advanced level in international. We are on top of the name list that can get the CHINA certification for energy conservation product. YX3/YE2 series three phase electric motors have a lot of advantages including high efficiency, energy saving, large starting torque, excellent performance, low noise, low vibration, high reliability, easy operation & servicing etc. While the mounting dimension and rated output power of YE2/YX3 series electric motors are in conformity with IEC standard. YX3 /YE2 Series motors are widely used as drive mechanism of various machineries, such as pumps, compressors, machining equipments, transportation system, agricultural mechanism, and food processing mechanism etc. Its operating conditions are the same as Y2 series three phase electric motors. Model Explanation Motor Performance Power range: 0.12-315KW Rated Voltage: 380V 400V 440V 690V Speed; 3000rpm 1500rpm 1000rpm 750rpm 600rpm Protection Class: IP55 Ambient Temperature: -15° C~40° C Altitude: Not exceed 1000 Meter Rated Frequency: 50Hz/60Hz Insulation Class: F Temprature rise: B Working Duty: S1(Continuous) Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above   Structure Description YX3/YE2 series ac induction motor mounting details: Schematic diagram    mounting typeB3B35B5V1mounting Discribtionframe with feet,end-shield without flangeframe with feet,end-shield with flangeframe without feet,end-shield with flangeframe without feet,end-shield with flangeSuitable frameH63-355H63-355H63-280H180-355YX3 series motors are totally enclosed fan cold(TEFC). bearing type    Horizontalverticalmotor frameDE sideN-DE sideDE sideN-DE side636201-2RZ/Z26201-2RZ/Z26201-2RZ/Z26201-2RZ/Z2716202-2RZ/Z26202-2RZ/Z26202-2RZ/Z26202-2RZ/Z2806204-2RZ/Z26204-2RZ/Z26204-2RZ/Z26204-2RZ/Z2906205-2RZ/Z26205-2RZ/Z26205-2RZ/Z26205-2RZ/Z21006206-2RZ/Z26206-2RZ/Z26206-2RZ/Z26206-2RZ/Z21126206-2RZ/Z26206-2RZ/Z26206-2RZ/Z26206-2RZ/Z21326208-2RZ/Z26208-2RZ/Z26208-2RZ/Z26208-2RZ/Z21606209-2RZ/Z26209-2RZ/Z26209-2RZ/Z26209-2RZ/Z21806211/Z26211/Z26211/Z26211/Z22006312/Z26312/Z26312/Z26312/Z2225(2P)6312/Z26312/Z26312/Z26312/Z2225(4-8P)6313/Z26212/Z26313/Z26312/Z2250(2P)6313/Z2/Z26313/Z16313/Z26313/Z1250(4-8P)6314/Z16213/Z16314/Z16313/Z1280(2P)6314/Z16313/Z16314/Z16313/Z1280(4P)6317/Z16313/Z16317/Z16313/Z1315(2P)6317/Z16317/Z16317/Z16317/Z1315(4-8P)NU3196319/Z1NU3196319/Z1355(2P)6319/Z16319/Z16319/Z16319/Z1355(4-8P)NU3226322/Z1NU322/Z16322/Z1  Company Profile CertificationsProduction ProcessProduction applicationPackaging & Shipping Worldwide Marketing Network After Sales Service   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
