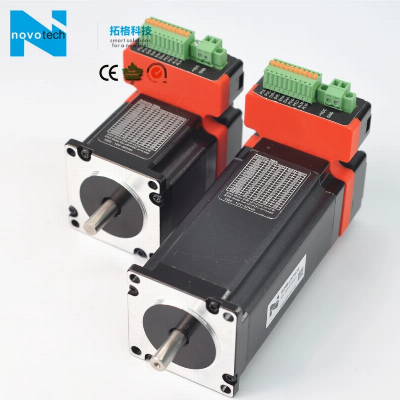

China Manufacture Integrated Hybrid Servo Stepper System

China manufacture Integrated Hybrid Servo Stepper System57IC09/57IC22/57IC30 Features1.Operating voltage: DC input voltage 15VDC to 50VDC,recommend working voltage 36V2.The max continuous output current is 8.2A, the max peak current is 13A (advanced overload capacity of step servo)3.Using FOC magnetic positioning control technology and space vector pulse width modulation (SVPWM) closed-loop control technology4.Using advanced variable current technology and frequency conversion technology, effectively reducing heat and vibration of motor and driver5.The number of pulses per cycle (subdivision) can be set by the debug software or the dial switch setting,the max subdivision no.is 51200.6.The max pulse frequency of control instruction is 500KHz (factory default is 200KHz)7.Pulse, direction and enable signal input interface level is 4.5 to 28V compatible8.Performance: smooth speed, small overshoot ,good output strength in medium and high speed, small tracking error, low heat of motor and driverAdvantageThis integrated motor system is hybrid stepper servo motor with driver built-in.It combined the advantage of stepper motor and servo motor.It has smooth speed, small overshoot ,good output strength in medium and high speed, small tracking error, low heat of motor and drive,and also without step lost.This integrated design has less wiring to reduce errors,keep stable and easy for installation.Also it's very small and lightweight,very suitable for some place that has requirement of volume.This new design will save at least 30% of total expenditure.Driver Model And Selection GuideMotor Type 57IC0957IC2257IC305731C105731C15Holding Torque 1.0N•M2.2N•M3.0N•M1.0N•M1.5N•MVector Maximum Current6A6A8.0A5.6A5.6ADrive Control SchemePure vector FOC control scheme, quick start and stop point(PM) control scheme, power angle control schemeStep Angle / Motor Pole Pairs1.8°/50 pairs pole 1.2°/50 pairs poleRecommended applicationOperation smooth in low-speed, and output strength is good in high-speed, low temperature rise, small vibration, excellent anti-interference ability and EMC effectOperation voltage15-50Vdc,36Vdc recommend Overvoltage Protection Voltage68Vdc±2Voltage control method32 bits DSP Vector closed - loop control technologyPulse Limit Frequency200KHzProtectionOvercurrent, overvoltage, undervoltage and tracking error tolerance alarmInput Signal Pulse, direction and enable differential / single-ended interface signal, interface level 4.5-28Vdc compatible, no need external current limiting resistorOutput Signal Alarm / in-position signal OC output, the output capacity is100mA, need external pull-up resistor, the maximum pull up voltage is 24VdcPosition Error Control Accuracy±1 PulseSubdivision No.Default 1600 / rev, through the DIP switch or debug software setting subdivision(200-51200)Dialing Switch SettingsPulse/Rev.SW1SW2SW3SW4DefaultONONONON800OFFONONON1600ONOFFONON3200OFFOFFONON6400ONONOFFON12800OFFONOFFON25600ONOFFOFFON51200OFFOFFOFFON1000ONONONOFF2000OFFONONOFF4000ONOFFONOFF5000OFFOFFONOFF8000ONONOFFOFF10000OFFONOFFOFF20000ONOFFOFFOFF40000OFFOFFOFFOFFNote : All above is normally used, and we can customize according to your request or choose the suitable model for you, please tell us following parameters: current, voltage, holding torque, body length,the application area.ApplicationSuitable for all kinds of small and medium-sized automation equipments and instruments. Such as: laser equipment, medical equipment, 3D printer, small and medium-sized engraving machine, electronic processing equipment, automatic crawling equipment, special CNC machine tool, packaging equipment and robot. It is especially useful for users who expect low noise and high speed applications.Packaging and shipping1.Outer packing: Standard export carton with required shipping marks2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded 3.As per the clients requirementsOur service1.Working time : 8:00 a.m - 10:00 p.m .Any questions, please tell us freely, we will be reply you asap.2.Lead time : For samples, 2 to 5 days will be OK. For mass production, the lead time depend on the quantities you need.3.Warrantity period : 18 months and Life-long maintenance service for the product.4.We accept products customize.FAQQ1: How to choose the suitable stepper or servo motor?A1: There are serveral important items: size, length, holding torque, voltage, current etc.After confirm them and told us, we can choose the suitable one for you.Q2: Any other methods to finalize the model?A2: Sure, you can send us the model you are using, we can help you find the suitable one.Q3:How to guarantee the Quality of Industrial Parts?A3: We have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.Q4:What's the Advantage of Your Parts for
