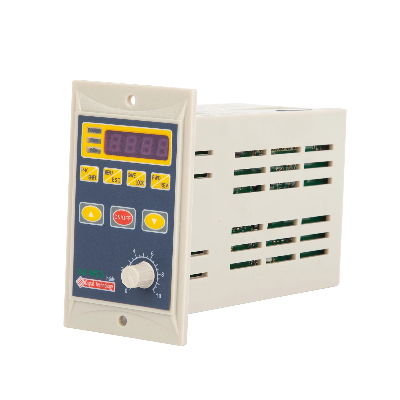

Variable Frequency Drive Us Series 0.2kw 0.4kw 0.75kw 220V

US Series Mini VFD,Mini Frequency Inverter, Mini AC Motor Drive 0.2kw,0.4kw,0.75kw Specially used for simple speed regulation of electric motors of Conveyor belt,Package Machine,Food Machine,Transmission equipment and othersSee below the details:Input 1phase 220v,Output 3phase 220v,US Series Inverter(VFD)is specially for 3 phase AC 220v Motor with Power less than and equal 0.75kw Low price/small size/easy installation/easy debug/simple parameters,can meet the needs of ordinary occasions.Technical characteristics:Output frequency range:1.0~99Hz, meet general speed regulation occassionWith speed regulating potentiometer, can also connect outside speed regulating potentiometerBuilt-in intelligent logic controller,can realize simple logic control functionWith electronic thermal relay function, and other traditional motor protection devicesCan connect external LED indication,convenient for field useAdopt the new PIM module,has complete protection functionUser friendly operation interface, simple parameter setting, very convenient to useCan set at will the V/F curve function,meet the special requirements occasionsCan use Shift key to view the real-time parameters Input frequency:50/60HzOutput frequency:0~99Hz Input voltage:1phase200v~240v AC, output voltage:3phase200v~240v AC,Power:0.2kw~0.75kw Widely used for simple speed regulation of electric motors ofconveyor belt,packaging machine,food machine,Transmission equipment and others US Series model and technical specification:ModelPower Capacity KVAInput Current  AOutput Current  AAdapted Motor KW1 phase 200~240V AC ,50/60HzTL-US00R2G13.03.21.60.2TL-US00R4G13.84.32.10.4TL-US00R7G15.663.10.75 US Series installation dimension drawing:/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
