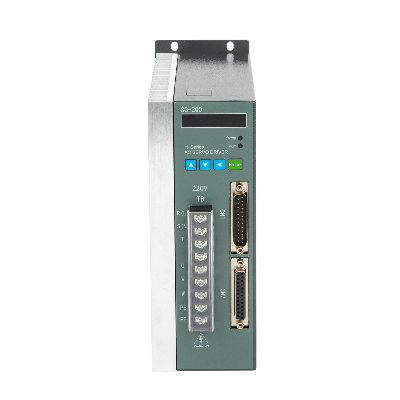

Silinman Sg200 AC Servo Driver

Structure and working principle of servo motor:Servo motor is one of the commonly used motor,it is a motor that absolutely obeys the command of the control signal.Before the control signal is sent, the rotor is stationary;when the control signal is sent,the rotor rotates immediately;when the control signal disappears, the rotor can stop immediately. As a special type of motor,synchronous servo motor is different from most other motors,it is designed for precise positioning,rather than speed controlling.80ST,220V(1PHASE,3PHASE)110ST,220V(1PHASE,3PHASE)130ST,220V(1PHASE,3PHASE)180ST,220V,380VAC SERVO DRIVER,SG200Since the development of AC servo technology in the early 1980s,the technology has become increasingly mature and the performance has been continuously improved.Now it has been widely used in CNC machine tools, printing and packaging machinery,textile machinery,automatic production lines and other fields. SG Series AC servo is a new generation of AC servo driver independently developed by our company. It mainly uses the latest 32-bit DSP as the core remote computing unit, and adopts complex programmable device EPLD and Mitsubishi intelligent power module.It has a series advantages such as high integration,small size,fast response,perfect protection, and high reliability. Using temperature:-10ºC-55ºCHumidity:less than 90%(No condensation)Vibration:less than 0.5g(4.9m/s2)Working duty:continuously Technical parameter:ModelSG200 SeriesInput power supplySingle phase or three phase,AC220v(-15%-20%,50/60Hz)Three phase, AC220v(-15%-20%,50/60Hz)Use environmentTemperatureUsing:0°C-55°C;Storage:-20°C-80°C HumidityBelow 90%(no condensation)Control modePosition control;Speed control;Torque control;Jog controlRegenerative brakingBuilt-inControl characteristicsSpeed frequency response
