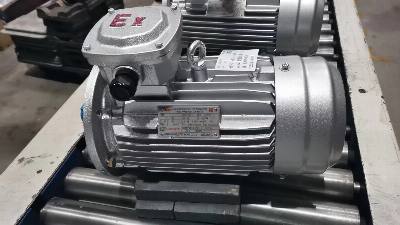

Anti Explosive Motor Explosion Proof Motors Yb2 Yb3 Yfb3

 High Efficiency Explosion-proof Induction Motors---------------------------------------------------------------------------------------------ApplicationsIdeal for the coal mine where methane and coal dust may be present(Ex dI)and dangerous explosion areas(Ex dIIT4,dIIBT4)in the plant with the classIIA, IIB and temperature T1~T4 flammable gas.FeaturesExd-symnbol ExdI,ExdIIAT4,ExdIIBT4, Category I:surface highest temperature no higher than 150ºC(when coal dust may cover the motor surface), no higher than 450ºC(when coal dust will not cover the surface or some protection work has been done to prevent the coal dust accumulation) CategoryII :surface highest temperature no higher than T1(450ºC),T2(300ºC),T3(200ºC),T4(135ºC); Terminal box with three or six terminals for rubber jacket cable (plastic cable) and steel cable.Ambient temperature:-15ºC~35ºC in coal mine and -15ºC~40ºC in plant.Rated Voltage:380V, 660V, 380/660V, 660/1140VGeneral DescriptionRated power: 1 to 375KWFrame sizes: 80 to 355 Voltage: 380V,660V,380/660V 50Hz (for Exd-symbol Exd I and frame size 80-355);660V/1140V 50Hz (for ExdI-symbol Exd I and frame size 112-355);380V, 660V, 380/660V 50Hz & 400V, 415V, 440V, 460V, 480V, 690V 60Hz(for Exd-symbol ExdII)            Degree of protection: IP55  Efficiency levels: IE3ModelOutputkWFLARPMEff.η%Power FactorFLTN.mLRTFLTTstTNLRAFLAIstINBDTFLTTmaxTNdB(A) Synchronous speed  3000r/minYBX3-80M1-20.751.7 287080.70.832.50 2.27.02.367YBX3-80M2-21.12.4 288082.70.833.65 2.27.32.367YBX3-90S-21.53.2 288084.20.844.972.27.62.372YBX3-90L-22.24.6 288085.90.857.30 2.27.62.372YBX3-100L-236.0 288087.10.879.95 2.27.82.376YBX3-112M-247.8291588.10.8813.1 2.28.32.377YBX3-132S1-25.510.6 293589.20.8817.9 2.08.32.380YBX3-132S2-27.514.2 293090.10.8824.4 2.07.92.380YBX3-160M1-21120.6 295091.20.8935.62.08.12.386YBX3-160M2-21527.9 294591.90.8948.6 2.08.12.386YBX3-160L-218.534.2 294592.40.8960.02.08.22.386ModelOutputkWFLARPMEff.η%Power FactorFLTN.mLRTFLTTstTNLRAFLAIstINBDTFLTTmaxTNdB(A)Synchronous speed  3000r/minYBX3-180M-22240.5 295092.70.8971.22.08.22.388YBX3-200L1-23054.9 296593.30.8996.62.07.62.390YBX3-200L2-23767.4 296593.70.89119 2.07.62.390YBX3-225M-24580.8 296594.00.90145 2.07.72.392YBX3-250M-25598.5 297594.30.90177 2.07.72.393YBX3-280S-275134 297594.70.90241 1.87.12.394YBX3-280M-290160 297595.00.90289 1.87.12.394YBX3-315S-2110195 297595.20.903531.87.12.396YBX3-315M-2132234 297595.40.904241.87.12.396YBX3-315L1-2160279 297595.60.915141.87.22.398YBX3-315L2-2200349 297595.80.916421.87.22.398YBX3-355S1-2185323 298095.60.915931.87.22.398YBX3-355S2-2200349 298095.80.916411.87.22.298YBX3-355M1-2220383 298095.80.917051.87.22.2100YBX3-355M2-2250436 298095.80.918011.67.22.2100YBX3-355L1-2280488 298095.80.918971.67.22.2100YBX3-355L2-2315549 298095.80.9110091.67.22.2100YBX3-355L3-2355619 298095.80.9111381.67.22.2104YBX3-355L4-2375654 298095.80.9112021.67.22.2104Synchronous speed  1500r/minYBX3-80M1-40.551.4 143080.60.753.7 2.36.52.358YBX3-80M2-40.751.8 143082.50.755.0 2.36.62.358YBX3-90S-41.12.6 143084.10.767.3 2.36.82.361YBX3-90L-41.53.5 143085.30.7710.02.37.02.361YBX3-100L1-42.24.8144086.70.8114.62.37.62.364YBX3-100L2-436.3144087.70.8219.92.37.62.364YBX3-112M-448.4 145588.60.8226.3 2.27.82.365YBX3-132S-45.511.2 146589.60.8335.9 2.07.92.371YBX3-132M-47.515.0 146590.40.8448.92.07.52.371YBX3-160M-41121.5 147091.40.8571.52.07.72.375YBX3-160L-41528.8 147092.10.8697.42.07.82.375YBX3-180M-418.535.3 147092.60.86120 2.07.82.376YBX3-180L-42241.8 147093.00.86143 2.07.82.376YBX3-200L-43056.6 147593.60.86194 2.07.32.379YBX3-225S-43769.6 148093.90.86239 2.07.42.381YBX3-225M-44584.4 148094.20.86290 2.07.42.381YBX3-250M-455103 148594.60.86354 2.07.42.383YBX3-280S-475136 149095.00.884812.06.72.386ModelOutputkWFLARPMEff.η%Power FactorFLTN.mLRTFLTTstTNLRAFLAIstINBDTFLTTmaxTNdB(A)Synchronous speed   1500r/minYBX3-280M-490163 149095.20.885792.06.92.386YBX3-315S-4110197 148595.40.897072.07.02.293YBX3-315M-4132236 148595.60.898462.0 7.02.293YBX3-315L1-4160285 148595.80.8910262.07.12.294YBX3-315L2-4200352 148596.00.9012822.07.12.294YBX3-355S1-4185330149095.80.891186 2.07.12.294YBX3-355S2-4200352 149096.00.901282 2.07.12.294YBX3-355M1-4220387 149096.00.901410 2.07.12.295YBX3-355M2-4250440 149096.00.9016022.07.12.295YBX3-355L1-4280492 149096.00.9017952.07.12.295YBX3-355L2-4315554 149096.00.9020192.07.12.295YBX3-355L3-4355638 149096.00.8822751.77.02.2102YBX3-355L4-4375674 149096.00.8824041.77.02.2102Synchronous speed  1000  r/minYBX3-80M1-60.371.291068.00.703.881.95.52.154YBX3-80M2-60.551.692572.00.715.681.95.82.154YBX3-90S-60.752.094578.90.717.582.06.02.157YBX3-90L-61.12.895081.00.7311.1 2.06.02.157YBX3-100L-61.53.895082.50.7315.12.06.52.161YBX3-112M-62.25.496584.30.7421.82.06.62.165YBX3-132S-637.2 97585.60.7429.41.96.82.169YBX3-132M1-649.5 97586.80.7439.21.96.82.169YBX3-132M2-65.512.7 97588.00.7553.91.97.02.169YBX3-160M-67.516.2 98089.10.7973.12.07.02.173YBX3-160L-61123.1 98090.30.801072.07.22.173YBX3-180L-61530.9 98091.20.81146 1.97.32.173YBX3-200L1-618.537
