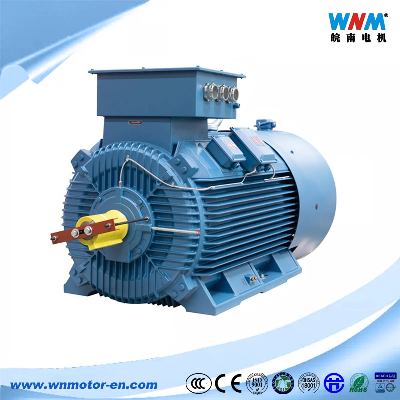

Yvf Yvp Frequency Converter Motors

High Efficiency Frequency Variable Speed Regulation Motor---------------------------------------------------------------------------------------------ApplicationsWidely applied in metallurgy, chemistry, textile, pharmacy, printing, packing and food industry on the machine or equipment by which adjustable speed is needed, like fan, pump, numerical control machine, machining center, etc.General DescriptionFrame sizes: 80 to 355    Rated output: 0.18 to 375kW          Insulation class: F            Voltage: 380VEfficiency levels: IE1 / IE2 / IE3 /IE4Frequency range for 2P: (3) 5-100Hz (frame size 80-250)                                        (3) 5-70Hz (frame size 280)                                        (3) 5-60Hz (frame size 315-355)Frequency range for 4, 6, 8, 10P: (3) 5-100HzFeatures: *Stepless speed regulation in a wide range*Good performance, energy saving*High-grade insulation material and special technological can withstand high frequency pulse impact*Separated fan for forced-ventilation*Separated fan for forced-ventilationOptional Features:Electrical:Insulation Class:HThermal Protection: PTC Thermistor, Thermostat or PT100Mechanical:Others mountingsProtection Degree:IP55, IP56, IP65Sealing:Lip seal, Oil seal Space HeaterDrain HoleModelOutputkWRated Ampere ARPMEff.%Power FactorRated TorqueN.mdB(A)Constant Torque Frequency RangeHzConstant Output  Frequency RangeHzSynchronous speed  3000r/minYE3VF80M1-20.751.7285580.70.832.51705-5050-100YE3VF80M2-21.12.4287082.70.833.6670YE3VF90S-21.53.2286584.20.845.0074YE3VF90L-22.24.6287085.90.857.3274YE3VF100L-236.0287587.10.879.9778YE3VF112M-247.8291088.10.8813.182YE3VF132S1-25.510.6293589.20.8817.985YE3VF132S2-27.514.4293090.10.8824.485YE3VF160M1-21120.6295091.20.8935.687YE3VF160M2-21527.9294591.90.8948.687YE3VF160L-218.534.2294592.40.8960.087YE3VF180M-22240.5295092.70.8971.290YE3VF200L1-23054.9296093.30.8996.892YE3VF200L2-23767.4296093.70.8911992YE3VF225M-24580.8296594.00.9014594YE3VF250M-25598.5297094.30.90177965-5050-70YE3VF280S-275134297594.70.9024198YE3VF280M-290160297095.00.9028998Specifications of cooling blower and brake for the motorMotorFrame8090100112132160180200225250280315355Cooling Fan(W)Power30425255558080150200230320700700(A)Current0.090.160.180.180.190.260.300.60.60.61.11.81.9VoltageStandard 380V, but blower of other voltage can be customized depending on user's requirement.Encoder OptionalIncremental EncoderMounting Type:Conventional mounting type and suitable frame size are given in following table(with "√")Framebasic typederived type B3B5B35V1V3V5V6B6B7B8V15V36B14B34V1880~112√√√√√√√√√√√√√√√132~160√√√√√√√√√√√√---180~280√√√√-----------315~355√-√√-----------If there is no other request in the order or agreement, terminal box standard position is at the right side of the frame; data above may be changed without prior notice.SiteShow RoomPremium ServiceCertificatesQuality ControlWannan Motor Production Workshop and Flow ChartHundreds of Certificates, Honors and more COMPANY information please go to "ABOUT US"---------------------------------------------------------------------------------------------------------------------------Welcome to contact us directly...wnmmotor.en.made-in-china.comhttps://youtu.be/frVvg3yQqNMWANNAN MOTOR     INDUSTRIAL SOLUTIONS  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
