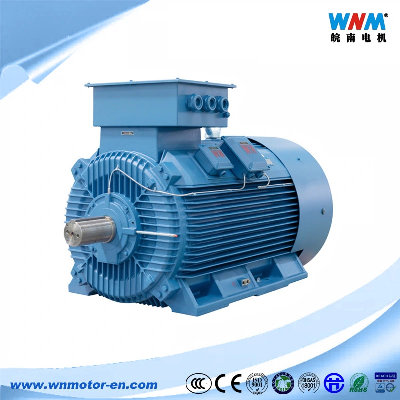

China Top Motor Manufacturer Brand Wannan Electric Motor

High Efficiency Three Phase Induction Motors---------------------------------------------------------------------------------------------Applications:Can be applied in the machines where continuous duty is required, typical applications likePumpsFansCompressorsLifting equipmentProduction industryGeneral DescriptionFrame sizes: 63 to 355M/L     Rated output: 0.12 to 400kWVoltage: 380V                          Frequency: 50Hz or 60HzPoles: 2, 4, 6, 8,10                    Efficiency levels: IE1,IE2,IE3,IE4Duty Cycle: S1                         Enclosure: IC411 - TEFCInsulation class: F                     Degree of protection: IP55/56/65/66Service Factor: 1.0                    Regreasing system: Frame 250 and aboveFeatures: Beautiful profile, high efficiency and energy saving (Level 2 of GB18613-2012), low noise, little vibration, reliable running.Optional Features:Electrical:Insulation Class:HThermal Protection:frame up to 132(include), with PTC Thermistor, Thermostat or PT100Mechanical:Others mountingsProtection Degree:IP56, IP65, IP66Sealing:Lip seal, Oil sealSpace Heater, Double shaft endsDrain HoleModelOutputkWRated AmpereARPMEff.%Power FactorRated TorqueN.mLRTFLTTstTNLRAFLAIstINBDTFLTTmaxTNdB(A)Synchronous speed   3000 r/minYE3-63M1-20.180.53272063.90.800.632.25.52.261YE3-63M2-20.250.70272067.10.810.882.25.52.261YE3-71M1-20.371.0274069.00.811.292.26.12.262YE3-71M2-20.551.4274072.30.821.922.26.12.262YE3-80M1-20.751.7287080.70.822.502.27.02.362YE3-80M2-21.12.4287582.70.833.652.27.32.362YE3-90S-21.53.2288084.20.844.972.27.62.367YE3-90L-22.24.6288085.90.857.302.27.62.367YE3-100L-236.0288087.10.879.952.27.82.374YE3-112M-247.8291588.10.8813.12.28.32.377YE3-132S1-25.510.6293589.20.8817.92.08.32.379YE3-132S2-27.514.4293090.10.8824.42.07.92.379YE3-160M1-21120.6295091.20.8935.62.08.12.381YE3-160M2-21527.9294591.90.8948.62.08.12.381YE3-160L-218.534.2294592.40.8960.02.08.22.381YE3-180M-22240.5295092.70.8971.22.08.22.383YE3-200L1-23054.9296593.30.8996.62.07.62.384YE3-200L2-23767.4296593.70.891192.07.62.384YE3-225M-24580.8296594.00.901452.07.72.386YE3-250M-25598.5297594.30.901772.07.72.389YE3-280S-275134297594.70.902411.87.12.391YE3-280M-290160297595.00.902891.87.12.391YE3-280M1-2110195297595.20.903531.87.12.391Mounting Type:Conventional mounting type and suitable frame size are given in following table(with "√")Framebasic typederived typeB3B5B35V1V3V5V6B6B7B8V15V36B14B34V1863~112√√√√√√√√√√√√√√√132~160√√√√√√√√√√√√---180~280√√√√-----------315~355√-√√-----------If there is no other request in the order or agreement, terminal box standard position is at the right side of the frame; data above may be changed without prior notice.SITEShow RoomPremium ServiceProducts and System CertificatesPatent CertificatesHonorsQuality ControlWannan Motor Production Workshop and Flow ChartHundreds of Certificates, Honors and more COMPANY information please go to "ABOUT US"---------------------------------------------------------------------------------------------------------------------------Welcome to contact us directly...wnmmotor.en.made-in-china.comhttps://youtu.be/frVvg3yQqNMWANNAN MOTOR    INDUSTRIAL SOLUTIONS  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
