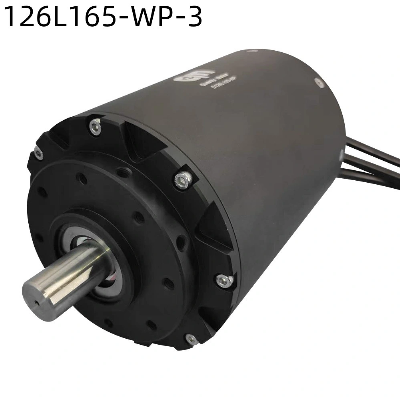

Quanly D126L165 Water Cooling 40kw Electric Motor for Outboard Engine

ApplicationsApplications:Electric Propulsion for various watercrafts 1. Efoil / Waterbike 2. Jet Surf/Surboard 3. Underwater thruster 4. Small boat /SUP / Kayak 5. POD drive 6. Jetski / Speed Boat 7. Yacht Either work with propeller directly or as an integrated part in a airtight cabin of trolling motor/outboard motor / POD  Product DescriptionAdvantage1. Robust & durable: Outer shell in black anodizing aluminum alloy, improve conductive heat transfer, prevent corrosion and oxidation2. High performance: Our motors provide extremely high torques with a minimum of power consumption. 3. Silient: low-cogging electro-magnetic design and dynamically balanced rotor, extremely silient and smooth operation. 4. Efficiency: Our energy-efficient motors save energy and costs, efficiency up to 90%. 5. Highter on power to weight ratio and torque to weight ratio. 6. Compact: High efficiency and high power density realized in a compact design. 7. Ball-bearing construction: Double seal ball bearings with moisture resistant grease for long life. 8. Cooling solution: water-cooling & Air-Cooling. 9. Shaft in SS316 Stainless Steel: withstand redial/axile stree,and work in the sea water against corrosion.   With an advanced 10-pole encapsulated core and 126mm diameter, this series compact DC motors deliver high torque up to 66 N.M with maximum output power at 40KW. Thanks to the unique sealing configuration design, these motors are tested waterproof IP68 according to ingress protection class, and can be operated permanently underwater and applied in dusty environments. We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are available upon request. Can be customized for - Sensor or sensorless- Winding Current- Shaft Options- Cable and Connector- Kv Ratings- Mounting Options- Encoder or Non  Product Parameters  VariantsD126L165-143D126L165-115D126L165-95D126L165-82D126L165-71D126L165-63D126L165-57Turn & Connection2T-Y2.5T-Y3T-Y3.5T-Y4T-Y4.5T-Y5T-YVoltage Range 8-14S(26-58.8V)10-18S(35-75.6V)10-22S(37-92.4V)14-25S(51.8-105V)14-28S(51.8-117.6V)14-32S(50-134.4V)14-36S(50-151.2V)Max Spin Speed(RPM)8,408 8,694 8,778 8,610 8,349 8,467 8,618 KV(RPM/V)1431159582716357Kt(N*M/A) 0.08120.10150.12180.14210.16240.18270.203No-load current@8.4V 5.3A4.3A3.9A3.3A2.9A2.5A2.3AMax Power(KW) 41.0 41.0 41.0 40.0 40.0 40.0 40.0 Peak Current (A) 1,430 1,150 960 830 725 650 580 Effeciency93.00%93.00%94.00%94.00%93.00%92.00%92.00%Max Torque(N*M) 66.0 66.0 66.0 67.0 67.0 66.0 66.0 Cont. current(A)550.0 440.0 367.0 315.0 275.0 245.0 220.0 Weight(kg)7.90 7.90 7.90 7.90 7.90 8.00 8.00 Construction 12N/10PCooling SolutionWater Cooling  Dimensions (mm) D126*L165Max.Working Temp.120ºCInsulation Volt. &Leak CurrentAC1000V/10MA/3SExtension Shaft D20*L30 mmLead Wires Extension 2AWGx300mmService Life (Hrs) 8,000   Drawing DimensionWiring Diagram  Auto Dyno TestingMotor Efficiency NephogramAuto Test ReportItem No.C_Voltage(V)C_Current(A)C_Input Power(W)C_Power FactorC_Efficiency(%)M_Voltage(V)M_Current(A)M_Input Power(W)M_Power FactorM_Frequency(Hz)M_Efficiency(%)M_Speed(rpm)M_Torque(N*m)M_Output Power(W)Synthesis Efficiency(%)058.13999928.851676.4000240.999598.78369943.47000124.1200011656.010010.9116438.67001393.19011752632.7999951543.23767192.056648157.79999961.2000013535.1000980.999499.03114342.8451.0600013500.8500980.9239417.7595.67240150136.3799953349.34741294.745476257.591.9700015285.6801760.999698.62344442.36999978.4800035212.9199220.9051398.595.85398947819.9799964996.79150494.5345357.330002109.1600046255.8701170.999798.37799842.1694.4800036154.3999020.8921388.39999495.64949466112.0599965886.65234494.098061457.110001131.9799967535.0600590.999798.06424741.93116.2799997389.2001950.8751375.60000695.046265450714.8799957023.15869193.206406556.900002154.5700078791.3203130.999697.70682541.740002138.5399938589.7197270.8576367.92001394.214989436617.6999958092.80322392.054466656.650002179.32000710153.129880.999597.39400541.549999163.7299969888.5400390.8391351.86999593.202721422320.8399949216.38867290.773865756.470001195.89999411057.839840.999597.12276541.439999181.03999310739.679690.8265344.07998792.625076413022.9999949947.63671989.960037856.23216.07000712142.120120.999496.82395241.279999202.60000611756.480470.8117334.89001591.647934401925.59999510774.5712988.737152/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
