High Speed Slip Ring designer and manufacutre for test equipment

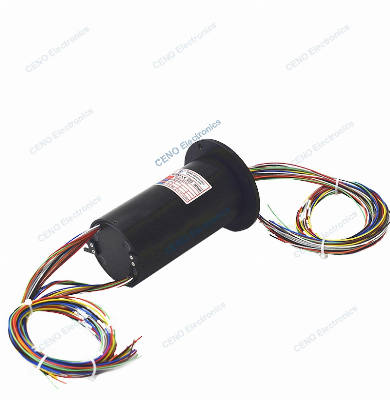

Slip ring is designed to use to transmit power, signal or data, pneumatically or hydraulically from stationary to a rotating platform.CENO high speed slip rings are demand very high accurate tolerances of the rotors, bearing space, high request of the concentricity of the rotors with other related parts. Also we have special ring shape and size of the rings to grantee the low rate of the wear out.ECN000-35P-GS with high speed up to 3000rpm,compact inner structure, stable electrical and signal performance, low friction and torque, longer lifetime.The high speed slip ring widely used for railway applications, helicopter,high speed roation table and test equipment.CENO also can provide different solutions according to customer's requirements, the inner hole size can be customized from 3mm to 980mm.  FeaturesHigh speed 3000rpmSmooth running360°continuous rotationLow electrical noiseApplicationsTest equipmentLab RD testing benchHigh speed roation tableMachinery manufacturingOptionalCircuits numberIP protection gradeWorking speedSignal type & current rating  Product Parameters ECN000-35P-GSSpecificationCircuits & Current35 rings @ 1AVoltage0~220VAC/VDCDielectric strength ≥500V@50HzInsulation resistance≥500MΩ@500VDCOperating speed0-3000 rpmWorking temperature-20ºC~+60ºCContact materialPrecious metalHousing materialAluminum alloy IP gradeIP51Installation wayFlange Outline drawing    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
