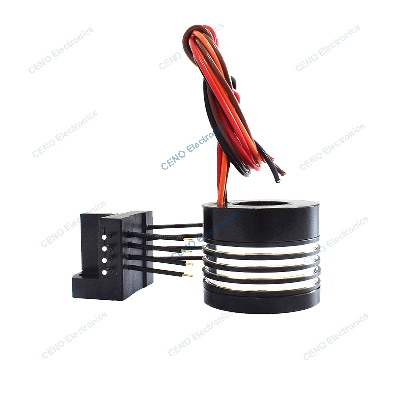

Split Pancake Slip Ring with Hollow Shaft Electrical Collector

This is one of separate slip ring from CENO company which has through hole 12.7mm. It is different from the traditional ECN series hollow shaft slip ring. There is no housing protection and  stator part is separated from the entire slip ring. Clearly to see the brushes and rings from the appearance. The configuration is easy to be observed the wearing status on each ring and brushes. It makes maintenance becomes convenient. For more information about how CENO's slip ring can fit your specific application, please contact us, we have you covered.  FeaturesMounting freelyECN series similarSeparate stator and rotorApplicationsTesting instrumentAutomation system machineryRoboticsOptionalOuter shapeContact materialThrough hole sizeWorking speedCircuit & Current  Product ParametersSCN012-04P                                              SpecificationCircuits & Current4x 2AmpVoltage0~10VACElectrical noiseMax 10mΩ Dielectric strength ≥ 500V@50HzInsulation resistance≥ 100MΩ@500VDCOperating speed0-300 rpmContact materialPrecious metal / SilverHousing materialN/AWorking temperature-20ºC~+60ºCIP protection gradeIP00Through hole size12.7mmWorking life10 million rotation / transfer Outline drawing/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
