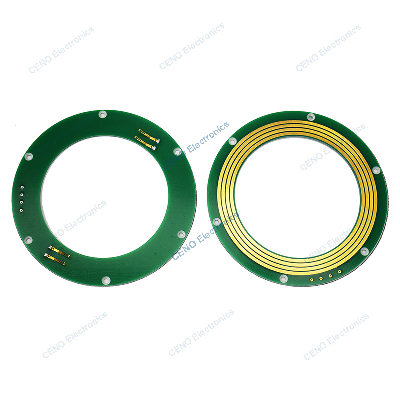

Pancake Slip Ring with PCB Board ID 90mm Electrical Collector

CENO separate pancake slip ring is also called platter slip ring because of its outline .Extremely thin is the feature of this series slip ring. a pancake or platter style slip ring can be used in a certain applications where a cylindrical shape slip ring will simply not fit into the available space or a very low profile is needed.  FeaturesMore thickness availablePower and signal combinationsExtremely thin,save spaceApplicationsExcavatorYacht3D total station OptionalCircuit numberCurrent ratingInstallation wayIP protection grade  Product Parameters  PSCN090-02P-02S                                         Specification Current 2*2A,2*2A(CAN bus signal)Voltage0-12 VAC/VDCElectrical noise≤70mΩ(50rpm)Dielectric strength ≥500V@50HzInsulation resistance100MΩ@100VDCOperating speed0-10 rpmContact materialprecious metalsPCBFR-4Inner diameter90mmRotation wayPcb board fixed on customers flange  Outline drawing  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
