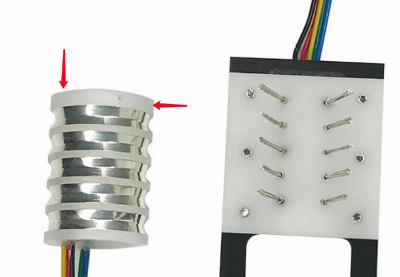

9 Channels Brushes Stator Parts of Separate Slip Ring A slip ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power and / or data. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints. Sometimes a self-contained "capsule" slip ring is not practical due to system size constraints or cost limitations. We can provide the slip ring (rotor) and brush block (stator) as separate components to be mated by the customer in their system. The rotor is supplied in a drum configuration which features consecutive individual rings along the axis of rotation. Miniature separates may have slip ring rotor diameters less than 3mm ParametersMechanical :Working speed 300rpmOperating temperature -40ºC~ +100ºCContact material Gold to goldElectrical:Circuit9Current 2AVoltage ≤380VACDielectric strength≥500V@50Hz between each circuitInsulation resistance500MΩ@ 500VDCElectric noise≤7mΩLead wire size28AWG, ,UL, color PTFE, silver or tin platedLead wire length200mmLife-span120,000,000rounds Features AlternativesLow noise Circuits Wear-resisting (gold contacting) Loading of each circuitAnti-vibration DimensionPower and data compatible Wire lengthEasy installation IP GradeCompact designprecious metal contactTypical Applications ByTune's Advantages CCTV Camera Affordable priceRobot Quality guaranteedMedical equipment Defense standardExhibition equipment Response within 24 hoursTotal station Prompt deliveryTest equipment Reliable package & shipmentRevolve door Flexible & quick customization Delivery time and shipment:2 weeks AROBy UPS ,DHL or FedEx , depends on your location Feedback & Main cooperators Contact Ushttp://btslipring.en.made-in-china.com/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
