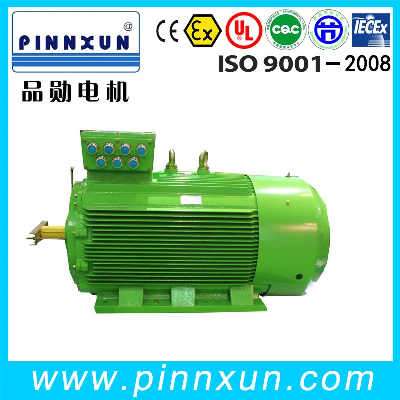

Squirrel Cage Motor 200kw Fan Motor

Siemens Motor 200kw IP54 motor, AC motor Y2 Series Cast of Iron Three Phase Induction Motor is specially designed for European market, whose terminal box is located on the top of motor. They are totally enclosed and fan-cooling designed. They are newly designed in conformity with the relevant requirements / rules of IEC&DIN42673 standards. They advantage of high efficiency, long working life, energy saving, high starting torque, low noise, small vibration, big breakaway torque, reliable operation performance, easy & convenient maintenance. Fixing measurement and power grade completely conform to IEC standards. --Y2 series three phase asynchronous electric motors are widely used in many fields, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery, food machines, agitator, air compressor etc. We also can supply aluminum housing type for frame size under the standard of IEC132. For the Connection Model of Y2 motor, please refer to the Name Plate on the motor (The Y Connection is adopted by motors' Output equal or below 3kW; The Delta-Connection is adopted by motors' Output above 4kW). Y2 Motor can be equipped with PTC. --For motor of frame size 160MM and above can be equipped with re-greasing system. Specifications: Ambient Temperature: -15° C~40° C Altitude: Not exceed 1000 Meter Rated Voltage: 380V or any voltage between 220-1140V Rated Frequency: 50Hz/60Hz Protection Class: IP44, IP54, IP55 Insulation Class: B/F Cooling Method: IC0141 Working Duty: S1(Continuous) Humidity: Lower than 90% Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above Ordering Informations: 1. Please indicate the motor type, rated output, rated voltage, rated frequency, synchronous speed, Explosion proof Mark, mounting type, rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment, normailly we think is CW roration and used indoor. 2. When user have special requirments, For example: Dispose the stator, bearing explosion proof and bearing temperature sensors, space heater, Plateau use, specical frequency, mounting size change, special output, the user must, order can be confirm after signing the technical agreement with engneering department. 3. This range of motor can also be made into Variable-Frequency motors, the range of frequency of which is 0-100HZ, the output and overall dimensions should be confirm separately.   1.Y2 series ac induction motor mounting details: Schematic diagram     mounting type B3 B35 B5 V1 mounting Discribtion frame with feet,end-shield without flange frame with feet,end-shield with flange frame without feet,end-shield with flange frame without feet,end-shield with flange Suitable frame H63-355 H63-355 H63-280 H180-355 Y2 series motors are totally enclosed fan cold(TEFC).2.bearing type-table 2table 2    Horizontal vertical motorframe DE side N-DE side DE side N-DE side 63 6201-2RZ/Z2 6201-2RZ/Z2 6201-2RZ/Z2 6201-2RZ/Z2 71 6202-2RZ/Z2 6202-2RZ/Z2 6202-2RZ/Z2 6202-2RZ/Z2 80 6204-2RZ/Z2 6204-2RZ/Z2 6204-2RZ/Z2 6204-2RZ/Z2 90 6205-2RZ/Z2 6205-2RZ/Z2 6205-2RZ/Z2 6205-2RZ/Z2 100 6206-2RZ/Z2 6206-2RZ/Z2 6206-2RZ/Z2 6206-2RZ/Z2 112 6206-2RZ/Z2 6206-2RZ/Z2 6206-2RZ/Z2 6206-2RZ/Z2 132 6208-2RZ/Z2 6208-2RZ/Z2 6208-2RZ/Z2 6208-2RZ/Z2 160 6209-2RZ/Z2 6209-2RZ/Z2 6209-2RZ/Z2 6209-2RZ/Z2 180 6211/Z2 6211/Z2 6211/Z2 6211/Z2 200 6312/Z2 6312/Z2 6312/Z2 6312/Z2 225(2P) 6312/Z2 6312/Z2 6312/Z2 6312/Z2 225(4-8P) 6313/Z2 6212/Z2 6313/Z2 6312/Z2 250(2P) 6313/Z2/Z2 6313/Z1 6313/Z2 6313/Z1 250(4-8P) 6314/Z1 6213/Z1 6314/Z1 6313/Z1 280(2P) 6314/Z1 6313/Z1 6314/Z1 6313/Z1 280(4P) 6317/Z1 6313/Z1 6317/Z1 6313/Z1 315(2P) 6317/Z1 6317/Z1 6317/Z1 6317/Z1 315(4-8P) NU319 6319/Z1 NU319 6319/Z1 355(2P) 6319/Z1 6319/Z1 6319/Z1 6319/Z1 355(4-8P) NU322 6322/Z1 NU322/Z1 6322/Z1   Company Profile CertificationsProduction ProcessProduction applicationPackaging & Shipping Worldwide Marketing Network After Sales Service  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
