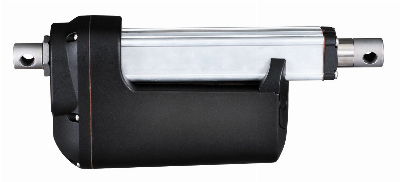

Bigger Power Actuator for Eppo Machine Fy020 12000n

FY020 12volt 24volt Electric Linear Actuator could be with bigger power adapter or bigger switch. The Model FY020 Linear Actuator is widely used for eppo machine, agriculture machine and other industrial application. It is used to make the machine lift and down, the power of the actuator comes from the control box, you may use 1 control box & handset to operate with the Linear Actuator. Technical specifications of FY020 Linear Actuator: Model No.: FY020 Stroke: 50-1000mm Installation dimension: Stroke+190mm Load capacity: 750N, 1500N, 4000N, 6000N, 8000N,10000N,12000N. Free load speed: 30, 18, 8, 4mm/s Input voltage: 48V/36V/24V DC / 12V DC Limit switch: Inner Protection grade: IP66 Type of duty: S2-10min Operation temperature: -26~65 centigrade Features: Material: Aluminum and plastic Color: Black Warranty: Two years Certification: CE/EMC+LVD Options: Stroke: 50~500mm, the linear actuator can design according to customer's requirements Free load speed: 4mm/s ~ 30mm/s Rated load speed: 3mm/s ~ 25mm/s High quality of electric linear actuator to worldwide customers. We are professional manufacturer in linear actuator. Item: Electric Linear Actuator, Electric Linear Motor Series: FY series Item Number: FY011, FY012, FY013 FY04, FY015, FY017,FY018,FY019,FY020,FY021,FY022 Delivery time: 3~7 days for samples High quality of electric linear actuator to worldwide customers. We are professional amnufacturer in Electric Linear Actuator and Electric Linear Motor. Electric linear actuator is widely used in Adjustable beds, Medical beds, Wheel chairs, Patient hoists, Table height adjustments, Industry mechanical instruments, furniture, home beds, office tables, massage equipment, sporting equipments and so on and so on. Specification of Our Electric linear actuator: Max. Thrust: 4000N, 6000N, 8000N,10000N,12000N. Voltage: 24VDC or 12VDC, Motor Drive Standard stroke: 100 / 150 / 200 / 250 / 300 / 350 / 400 mm, special stroke are available according to customer' requirement. Duty cycle: 10% Ambient temperature -26° C to +65° C Standard protection class: IP43,IP54,IP65,IP66 Built-in integral limit switch, not adjustable after leaving factory Low noise design, dB
