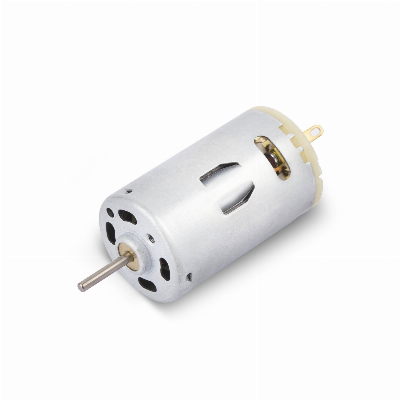

12V DC Motor for Electric Vacuum Cleaner Customized

Product ParametersModel No.: RS-390SH-2975-1 Size details:Motor Diameter: φ27.7mm Motor housing length:46.5mm Shaft length: customization Specifications:Rated voltage:  DC 12V Direction of rotation: CW/CCW  No load speed: 12000 r/min No load current: 0.29A  Rated torque: 58.6g.cm  Rated speed:  10165r/min Rated Out Put: 1.31W Stall torque:  820g.cm Stall current: 8.9A All technical data can custom made for different application. Customized items:DC motor, gearbox motor, vibration motor, automotive motor,rushless motor. Accessories offered like encoder, gear,worm, wire, connector. Ball bearing or Oil-impregnated bearing. Shaft configuration(multi-knurls,D-cut shape, four-knurls etc). Metal end cap or plastic end cap.  Precious metal brush/ carbon brush. Technical data.   Detailed PhotosApplication CertificationsPackaging & ShippingCompany ProfileOur AdvantagesFAQ1.What kind of motor do you supply?Kinmore specializes in making DC motors & gear motors with the diameter ranging from 6mm-80mm; automotive motors and vibration motors are our strength area, too; we also provide brushless motors. 2.What's the lead time for samples or mass production?Normally, it takes 15-25 days to produce samples; about mass production, it will take 35-40 days for DC motor production and 45-60 days for gear motor production.  3.Could you mind sending the quotation for this motor?For all of our motors, they are customized based on different requirements. We will offer the quotation soon after you send your specific requests and annual quantity.  4.Do you offer some kinds of accessories like encoder, PCB, connector, soldering wired for the motor?We specialize in motors, instead of accessories. But if your annual demand reaches a certain amount, we will apply to the engineer for offering the accessories. 5.Are your motors certificated with UL, CB Tv, CE?All of our motors are UL, CB Tv, CE compliant, and all our items are making under REACH and ROHS. We could provide motor's exploring drawing and BOM for your products UL certificated. We also could make motors built-in filters based on your EMC directive for your EMC passing.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
