Induction Heating Furnace for Forging

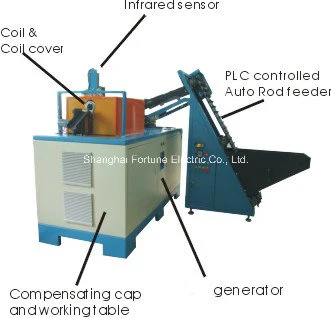

Induction Heating Furnace for ForgingMain parts of the rod forging Induction heating furnace: 1. M. F Induction Heating Generator (power supply). 2. Compensation Capacitor unit. 3. Heating coil and accessories 4. Pneumatic rod feeder (Handling system) 5. Stand or working table. Main characteristics: 1. Suitable for rod heating of steel, cooper, bronze and aluminum. 2. Portable and light weight, easily installed beside any pressing equipment. 3. Installation and operation can be very easily to use. 4. The rod can be rapidly heated to forging temperature to reduce the oxidtion of the rod furnace and to raise the quality of the parts. 5. With a very large range of frequency adaptable the rod larger than 15mm can be heated. More rapidly and more evenly. 6. Designed to work continuously everyday. 7. Pneumatic rod feeding. 8. High efficiency, saving energy and cost. 9. Easy to change heating coil to heat rods of different size. 10. No preheating required just start the machine and can heat the components to a temperature of 1350 Degree Centigrade. ModelDW-MF-110KWDW-MF-160KWApplicationsRod about φ15-80mmRod about φ15-80mmInput power max110KW160KWOutput power max70-550V70-550VInput power desire3*380 380V±20% 50 or 60HZOscillate frequency1KHZ-20KHZ,according to the application ,normal about  4KHZ,8KHZ,11KHZ,15KHZ,20KHZDuty cycle100%24hours workWeight120KG150KGCubage(cm)40x88x76cm40x88x76cm/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
