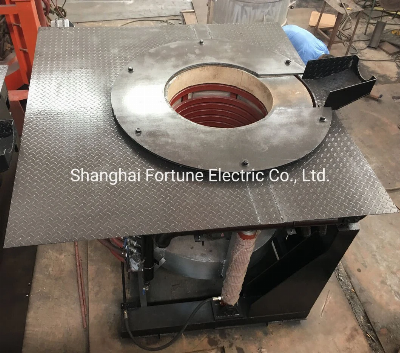

0.5 to 60 Ton Medium Frequency Electric Induction Furnaces

0.5 to 60 ton Medium Frequency Electric Induction FurnacesApplication This GWG-J Series Coreless Medium Frequency Electric Furnace is for melting cast steel, cast iron, stainless steel, copper, aluminum and other metals or its alloy. It can also be used together with self-heated furnaces and electric arc furnace for heating or keeping warm/holding the molten iron and molten steel. It is particularly suitable for medium-size or big enterprises. Structure Features 1. Solid steel structure and durable; 2. Good magnetic isolation, safe and reliable; 3. Solid frequency conversion power supply, easy operation; Adjustable power rate, easy operation and maintenance; 4. Easy to start up with load or free of load. Electrical Feature: 1. Digital CMOS chip (U. S. ASIC-2-12), with the highest degree of integration at home, is used in control circuit, the overall machine controlled through one single panel; 2. Frequency-sweep zero voltage start, high success rate, no shock; 3. Automatic resistance adjustment, permanent power output, 10-20% energy saved in comparison with domestic traditional machine of the type; 4. Auto phase sequence adaptation, free of synchronization; 5. Good performance in reload staring, auto recovery; 6. Highly integrated in controlling circuit, free of use of high-rate starter and relay loop, fairly low failure rate; 7. Wholly digital design, strong in anti-interference, no temperature shift when in continuous working; 8. Multi-protection functions (for over current, over voltage, insufficient water pressure, power failure, or phase absence), and mishandling will not cause damage to machine. Model explanation ( GWG-1-750/1J for example} GWG--------Steel Shell Coreless Medium Frequency Electric Furnace -1-------Rated Capacity 1 Ton (1000kg) -750-------Rated Power 750Kw /1--------1000Hz (1KHz) -J---------Hydraulic tilting Data sheet for 0.5 ton to 40 ton 0.5 to 60 ton Medium Frequency Electric Induction Furnaces ModelInput PowerInput Volt.Incoming Curr.Rated PowerDC Curr.DC Volt.Melting Rate  Working Freq.Working Volt.Rated CapacityPower ConsumptionKwV/pulseAKwA  VT/H  Hz  VTKWH/TGWG-0.5-250/1J280380/64002505005000.4100015000.5770GWG-0.75-400/1J400380/66504008005000.6100015000.75770GWG-1-750/1J800380/6120075015005000.9100015001720690/67008508805002600660GWG-1.5-1000/0.5J1100690/6912100011408801.250026001.5700GWG-2-1500/0.5J1650690/61360150017008801.750026002675GWG-3-2500/0.5J2750690/62275250028408802.5650026003610950/61700208012503200560GWG-4-3000/0.5J3300690/62730300034108803.250026004590950/62040250012503200560GWG-5-4000/0.5J4400950/62300400033301250550034005500/550GWG-6-4000/0.5J4400950/122300400033301250550034006500/550GWG-8-5000/0.5J5000950/1234005000420012507~850034008500/550GWG-10-6000/0.5J6300950/1237506000460012509~10500340010500/550GWG-12-8000/0.5J8000950/12490080006000125010~11500340012500-550GWG-12-8000/0.25J8000950/12490080006000125010~11250340012500-550GWG-15-8000/0.25J8000950/1249008000600012509~10250340015550-590GWG-15-10000/0.25J10000950/246500100008000125013~14250340015500-550GWG-18-12000/0.25J12000950/2481601200010000120013~14250340018500-550GWG-20-12000/0.25J12000950/2481601200010000120013~14250340020500-550GWG-25-14000/0.25J14000950/2494601400011600120013~15150~200340025500-550GWG-30-16000/0.2J16000950/24108501600013300120015~16150~200340030500-550GWG-40-18000/0.2J18000950/24122401800015000120020~22150~200340040500-550Pictures for different 0.5 to 60 ton Medium Frequency Electric Induction Furnaces: 1 ton and 2 ton hydraulic tilting induction furnaces40 ton induction furnaces Induction furnace workshop 10 Ton induction melting furnace in Qom, Iran  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
