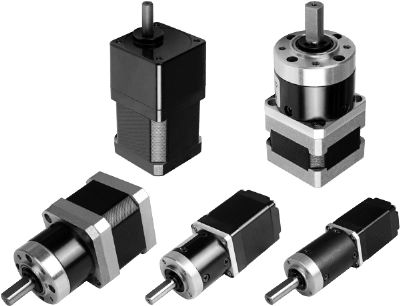

NEMA 8 to NEMA 43 Hybrid Step Motor with CE Certificate

NEMA 8 to NEMA 43 Hybrid Step Motor with CE Certificate• Manufacturer Part Number: H20~H110 • Motor Type: Bipolar Stepper Motor 4 Wires 2 Phase, Unipolar Stepper Motor 6 Wires 4 Phase • Frame Size: 20mm~110mm Stepper Motor Nema 8 to Nema 43 Mounting • Stepper Angle: 0.9deg and 1.8deg• Shaft Type: Single Shaft or Double Shaft • Application: Textile Motor, Projector Motor, Scanner MotorApplicationsWidely applied in computer periphery, telecommunications, machine tools, textile machinery, automation office equipment, food machinery, medical equipment, antenna, air-condition, electrograph, printer, duplication machine, CNC Machine, scanner, sheet feeder, Features1. Precise Position Control, linear Speed Selection, forward & Reverse, Pause and Holding Function, long life 2. Low Vibration, Low Noise, low cost, High Speed, High Torque, High Performance, low inertia and high accuracy 3. The variety of accessories and equipment, to meet the customers in different field Drawing of NEMA 8 Step Motor:Drawing of NEMA 14 Hybrid Stepping Motor:Drawing of NEMA 17 Hybrid Stepper MotorDrawing of NEMA 23 Stepping MotorDrawing of NEMA 34 Step Engine                                                                                 Electrical SpecificationSERIESFigure sizeStep AngleMotor body lengthRated Current Phase ResistancePhase Inductance Holding TorqueDetent Torque Lead WireMotor Weight ( o )(mm)(A)(Ω)  (mH)(N.cm)(N.cm)(NO.)( g)H20NEMA 8 Square 20mm1.828,34,400.2~0.63.2~320.9~8.81.4~2.60.2~0.5450~82H28NEMA 11 Square 28mm1.828,33,41,500.35~0.64.2~242.2~18.54.5~100.3~0.84105~180H35NEMA 14Square 35mm0.9 /1.828,340.36~0.84.5~304.2~428~180.3~14,6120~190H36NEMA 14Round 36mm0.915.2,19.80.3~0.4515~16.88.2~8.53.6~8.80.3~0.5455~95H39NEMA 16Square 39mm0.9 /1.820,26,34,400.4~1.22.5~303.0~268~240.5~1.44,6100~210H42NEMA 17Square 42mm0.9/1.828,34,40,48,580.16~2.31.2~301.6~5410~540.9~3.24,6130~450H57NEMA 23Square /round 57mm0.9/1.841,45,51,56,64,76,100,1120.38~4.20.4~321.2~3422~2802.5~124,6450~1400H60NEMA 24Square60mm1.2/1.841,45,51,54, 56,64,76,902.0~4.60.4~1.80.8~5.575~2603.0~123,4500~1400H86NEMA 34Square /round 86mm0.9/1.2/1.863,66,78,92,98,114,122,126,1502.1~6.80.3~4.50.65~17.5180~8503.5~116.53,81.6~4.2H110NEMA 43Square 110mm1.2/1.8115,120,140,150,165,1704.2~5.00.94~2.47.0~228.0~17.820.5~45.53,85.8~10Note: We accept the customized design if the customers give us the details, thanks!Factory AbilityAs a major manufacturer of high-performance hybrid stepper motor, stepping motor, stepper gear motor, DC motor, BLDC motor, AC gear motor and synchronous motor. I.CH offers total satisfaction to worldwide customers in office equipment, home appliance, multimedia, power tool, automotive parts, medical instrument, textile industry equipment, industrial automation and toy industries and so on.  Using high-grade material and advanced manufacturing equipment, and combined with our certified ISO9001 quality management system, We are able to offer you the benefit of large-scale and high quality products. Work flow:Advantages1. Convenient & Friendly Customer Service; 2. Low Prices Direct From Factory Suppliers; 3. Fast Delivery Around the World; 4. High Quality With Global Standards; 5. 1 Year Factory Warranty;    Package-wooden case, Carton or as your requirements; -Shipping way: by ship, by air or by express; -Delivery time: 20-50 days.      We can also supply other similar product                        BLDC Motor                                   Stepper Geared Motor                   Linear Stepper Motor     FAQQ:How do I choose a suitable stepper motor for my application?A:There are several important criteria to consider: holding torque, physical size (NEMA size, length of motor etc.), supply voltage, and supply current etc. Once you determine these key criteria, we can find a suitable model for you, such as 3D Printer and Robot. Feel free to contact us, we are more than happy to help you with the selection process.   Q:I need a non-standard hybrid stepping motor for my application, can you help?A:Certainly, most of our customers request custom configurations in one form or another. If you plan on replacing a step motor in an existing application, just send us a drawing or sample and we can help you find a suitable replacement. Alternatively, contact us and describe your application, our engineers will work with you to create a solution tailor-made for you.   Q:Do you have any stepping engine in stock? Can I order samples first? A:We stock many of our standard models. If you would like to test a stepper motor first, we are glad to send some your way. Of course we do not stock specialized stepping motors. If you have special needs, please let us know and we will try our best to send you samples as soon as possible.    Q:Can it be double shaft?A:Yes, It can be single shaft or double shaft   Q:What size is this stepper motor?A:Its Frame Size is 35x35mm, NEMA 14 Mounting.  Q: What application for NEMA 11?A: It can be used as CCTV motor or robot moto
