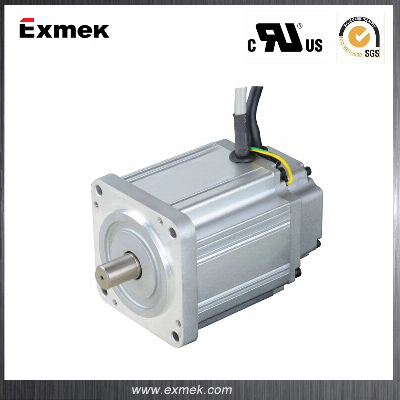

80mm DC Brushless Motor (ME080AS100)

General information 8 poles with three phase15 slots distribution winding design for low cogging6 slots for automatic windingInsulation class B, higher insulation class on requestSintered Neo MagnetMultiple lines of encoder availableLower voltage availableSpecifications SpecificationME080AS100Supply voltage(reference)310 ( VDC)Rated continuous torque1 (Nm)Rated speed at cont. Torque3000 (rpm)Rated continuous stall current1.87 (A)Rated continuous output power316 (W)Rated peak torque3.04 (Nm)Rated peak current4.73 (A)Torque constant0.7033 (Nm/A)Ke(voltage constant)73.61(V/krpm)Terminal resistance13 (Ω)Inductance65 (mH)Insulation classBRotor inertia6.00E-05 (Kg. M²)Weight1.8 (Kg)Length111 (mm)MechanicalCharacteristic diagramPackaging & Shipping1, Waterproof plastic bag packed in foam box and carton as outer packing.2, Export wooden box packaging for products.Company ProfileOriginally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co., Ltd., one of TOP 20 stated owned Machinery GroupPrivately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd. Exmek Electric ---Registered Brand NameBusiness: Design and manufacture of motion control products and componentsHighly qualified personnelUL, CE, RoHS certificationISO 9001, ISO 14000Company CapabilitiesModern Motor Design and ManufacturePart Set Design and ManufactureMagnetic Design Software-MotorsolverMoldingShipping world wideWhy Exmek Electric Open for general discussion and questionsTime to market or theatre of operations can be substantially reducedTalented team of engineers providing innovative technical solutionsOne stop "supplier" and complete sub-systemQuality products provided at competitive low costAbility to ship world wideOn time deliveryTraining at Customer locationsFast service on return and repair resultsMany repeated customersApplications: Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.  We are open for general discussion and questions. Contact us now!  Exmek Electric, your long-term reliable partner. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
