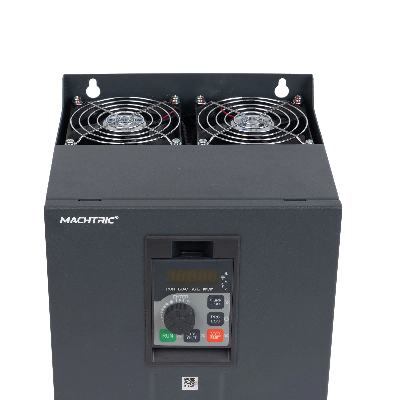

Motor Converter Inverter out Frequency Inverter V/F PWM Control

M500 Energy Saving Vector Control Open Loop Universal VFD Frequency Inverter  1.Product Specification:1.Output Power:0.75kw/1.5kw/2.2kw/2.Rated Frequency :50hz/60hz3.Output Frequency Range:0~400Hz4.Input Voltage Range:single phase (1 phase) 220V±15% 5.Output Voltage Range:3 phase 220V±15% 6.Control way: Open loop vector control(SVC)      V/F control7.Main function: Control and adjust the speed of the ac motor Type0.75kw 220v VFD1.5kw 220v VFD2.2kw 220v VFD4kw 220v VFD5.5kw 220v VFDInput  Voltage 220V(+/-15%)220V(+/-15%) 220V(+/-15%) 220V(+/-15%) 220V(+/-15%) Output Voltage 220VAC220VAC220VAC220VAC220VACInput  Frequency 50/60Hz50/60Hz 50/60Hz 50/60Hz 50/60Hz Output Frequency 0~400Hz0~400Hz 0~400Hz 0~400Hz 0~400Hz Rated  current 4A7A 10A 16A 20A Input  Phase1 phase1 phase1 phase1 phase1 phaseOutput Phase3 phase3 phase3 phase3 phase3 phase  ItemSpecificationsMain controlfunctionsMaximum frequencyVector control: 0~600HzVF control:0~1200HzCarrier Frequency1k ~ 15kHz; the carrier frequency will be automatically adjusted according to the load characteristics.Input frequencyresolutionDigital setting: 0.01Hz Analog setting: maximum frequency ×0.1%Control modeOpen loop vector control ;V/F control.Start-up torqueMode G machine: 0.5Hz/180% (open loop vector control)Mode P machine: 0.5Hz/120% (Open loop vector control)Speed adjustmentrange1:200(Open loop Vector flux control)Main controlfunctionsStable speedPrecisionOpen loop Vector flux control:≤±0.5% (rated synchronous speed)Stabilization of speed controlOpen loop Vector flux control:≤±0.3% (rated synchronous speed)Torque response≤40ms(Open magnetic flux vector control)Overload capacityMode G machine: 150% rated current 60s; 180% rated current 5sMode P machine: 130% rated current 60s; 150% rated current 5sTorque boostAutomatic torque boost; manual torque boost 0.1% to 30.0%V/F curveLinear V/F, Multi-point V/F, and Square V/FSpeed-up andSpeed-down curveStraight line or S curve speed-up and speed-down mode;four kinds of speed-up and speed-down time;Speed-up and speed-down time ranges from 0.0sto 3000.0sDC brakeDC brake frequency: 0.00Hz ~ maximum frequency; brake time: 0.0s ~ 36.0s, and brake current value: 0.0% to 100.0%.Jog controlJog frequency range:0.00Hz ~ 50.00Hz;Jog speed-up/speed-down time: 0.0s ~ 3000.0s.Simple PLC and multi-speed runningIt can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.Built-in PIDIt is easy to realize process-controlled close loop control system.(AVR)Automaticvoltage regulationIt can keep constant output voltage automatically in case of change of mains voltage.Torque limit and control"Shovel" characteristics, automatic limit on the torque on running time, preventing frequent over-current trip; closed loop vector mode can realize the torque controlCustomizedfunctionsPeripherals self-detection uponpower-onIt can conduct safety detections on the peripherals upon power-on, including earth and short circuit detections.Shared DC busfunctionIt can realize the function that multiple inverters share the DC bus.JOG keyProgrammable key: Select the forward and reverse rotations/jog operation command.CustomizedfunctionsTraverse frequency controlMultiple triangular-wave frequency control function.Fast current limit functionWith fast current limit algorithm built in to reduce the probability of over-current alarm; to improve the anti-jamming capacity of the whole machine.Timed controlTiming control function: Setting time range from 0h to 65535h.Keyboard extension line standardizationCustomers can use standard cable to extend the keyboardOperationfunctionRunning commandchannelThree types of channels: operation panel given, control terminal given and serial communication port given. These channels can be switched in various ways.Frequency sourceTen types of frequency sources in total: digital given, analog voltage given, analog current given, pulse given, and serial port given. It can be switched in various ways.Auxiliary frequency sourceTen types of auxiliary frequency sources in total. It can implement micro tuning and synthesis of auxiliary frequency.Input terminalFive digital input terminals, and seven terminals in maximum (AI1, AI2 can be used as DI terminals), it has compatibility to PNP or NPN input method.Two analog input terminals, in which AI1 only be used for voltage input, and AI2 can be used as voltage or current input. (if expanded- input or output terminal function is needed, please use M700 series.)Output terminalOne digital output terminal (bipolar output)Two relay output terminal Two analog output terminals, with optional 0/4mA to 20mA or 0/2V to 10V. It can realize the output of set frequency, output frequency and rotation speed etc.Display andKeyboardOperateLED displayDisplay parameterLCD displaySelective parts, Chinese/English to suggest the operation contentParameter copyUse parameter special copy keyboard can copy the parameter quicklyKey lock and function chooseLock part of the keyboard or th
