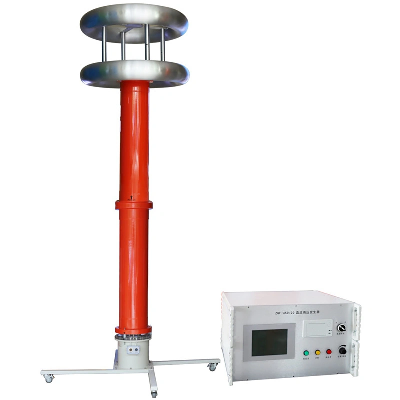

DC High Voltage Generator

high voltage generatorTechnical features:High frequency voltage doubling circuit, PWM pulse width modulation technology and high power IGBT devices.Large voltage feedback, high output voltage stability, ripple coefficient ≤1%.Range smooth voltage regulation, voltage regulation fineness good adjustment accuracy ≤0.5%, stability ≤1%, voltage and current error 1% (reading ±0.2KV), current error ±1 word.Zero voltage boost potentiometer.75%UDC1mA function button, convenient zinc oxide arrester test, accuracy 1% reading ±1%.Overvoltage protection using code setting, clear at a glance, error ±1%.Pressure doubling using new materials, light and strong. Appearance coated with special insulation material, good electrical performance, strong moisture resistance.Folding support foot, large diameter area, good stability.Integrated design, high voltage mop cable leading, convenient field test.The products meet the technical requirements of DL/T848.1-2004, and have passed the type test of the electrical equipment quality testing center of the Ministry of Power, and strictly implement the enterprise standard factory.high voltage generatorall-in-onespecificationTechnical parameter 40/360/260/360/580/2100/2120/2120/5Rated voltage (kV)4060606080100120120Rated current (mA)32352225Rated power (W)120120180300160200240600Chassis weight (kg)710.510.510.51111.211.211.2Pressure doubling weight (kg)One2.52.72.72.73.03.33.33.3Pressure doubling height (mm)One400400400400400500500500Voltage measurement accuracyDigital display meter ± (1.0% reading ±2 words)Current measurement accuracyDigital display meter ± (1.0% reading ±2 words)Ripple coefficient≤1%Voltage stabilityRandom fluctuation, power supply voltage change ±10% ≤1%Overload capacityThe no-load voltage can exceed the rated voltage by 10% for ten minutesThe maximum charging current is 1.5 times the rated currentPower sourceSingle-phase AC 50Hz 220V±10%Working modeIntermittent useThe maximum continuous duration is 30 minutesWorking environmentTemperature: -10 ~ 40ºCRelative humidity: not more than 85% at room temperature of 25ºC (no condensation)Altitude: Below 1500 metersWith capacitive load capacityThere is no limit to the electrical capacity of the subjectIt can be charged at 1.5 times the rated currentStructural characteristicsEpoxy glass fiber reinforced plastic electrically insulated pressure doubling cylinder Air insulation, no leakageOperating box characteristicsHigh-precision 0.75UDC1mA single-touch button (accuracy ≤1.0%) suitable for zinc oxide arrester testOvervoltage protection is set at a glanceSplit machinespecificationTechnical parameter400/10400/20450/20500/10500/20500/40Rated outputVoltage (kV)400400450500500500Rated outputCurrent (mA)102020102040Rated outputPower (W)40008000900050001000020000Maximum chargeCurrent (mA)153040153060Voltage measurement error±1%(full degree)±2 wordsCurrent measurement error±1%(full degree)±2 wordsOvervoltage setting error≤1%0.75 Switching error≤1%Ripple coefficient≤0.5%Voltage stabilityRandom fluctuation, power supply voltage change ±10%, ≤1.0%Working modeIntermittent use: rated load 30 minutes1.1 times rated voltage use: 10 minutesAmbient humidity-10ºC~40ºCRelative humiditnot more than 85% when the temperature is 25ºC (no condensation)altitudeBelow 1500 metershigh voltage generator/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
