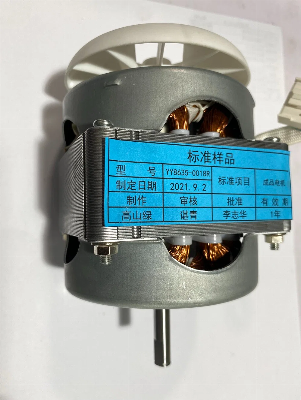

Electrical Freezer Square Shaded Pole Fan Motor

Product Description1. Electric Fan motor type: Single-phase induction capacitor2. The working voltage is 100~120V/50/60Hz/220~240V/50/60Hz,the maximum power is 90w3. The rotating speed(RPM) is No load: 1550~1750rpm(60Hz); 1400~1460rpm(50Hz) Load: 1300~1450rpm(60Hz); 1200~1350rpm(50Hz)4. The coil material is aluminum wire5. Fine Process Technique6. Low noise,long work time7. With competitive price8. AC electric motorCan be fully customized according to the customers' sample of motorFor more details,welcome to inquiry. Operating Voltage1)100~120V/50/60Hz     2)220~240V/50/60HzMotor speedNo load: 1550~1750rpm(60Hz); 1400~1460rpm(50Hz) Load: 1300~1450rpm(60Hz); 1200~1350rpm(50Hz)Nominal power120W;0.45N.m MmaxStator winding typeinner windingenameled wire1) Stator: copper wire & copper clad aluminum & aluminum wire; 2) Rotor: cast aluminumprotectorFuses & Thermal ProtectorsMain applicationBread Maker & Steam OvenYY series motors are single-phase capacitor-Induction motors,belongs to asynchronous motors.These Electric motors are mainly used in Bread Maker & Steam Oven, It can run for a long time.This type single phase capacitor start motor can be in cast iron or aluminum housing.In the current international market, European and American customers prefer the small and beautiful appearance of aluminum housing motors,steel frame motors.Some customers in Asia, Africa and the Middle East prefer cast iron housing motors,.the performance of motors with different housings is the same.Technical Specification:  Model Voltage(V)/Free Load/At Max. Efficiency/At Stall Speed(rpm) Current(A) Speed(rpm) Torque(N.m) Output(W) Current(A) Torque(N.m)YY8628-0001120V/60Hz18000.814500.40581.90.32YY8625-0001120V/60Hz18000.7514000.38501.70.30YY8622-0001230V/50Hz15000.2811500.37431.50.28Installation DimensionsSpecification Curve  Recommend Products  Company ProfilePackaging & ShippingFAQQ1: What kind motors you can provide?A1: For now, we mainly provide permanent magnet brush dc motors, brushless dc motor, dc gear motor, micro dc motor, ac gear motor, planetary gear motor, with diameter range in 42~110mm.Q2: Is there a MOQ for your motors?A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style.Q3: Could you send me a price list?A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.Q4: Are you motors reversible?A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.Q5:How about your delivery time?A5: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
