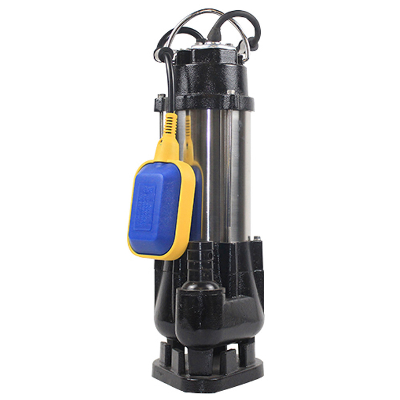

Submersible Water Pump (0.18KW/0.25HP) for Dirty Water

V Series Small Electric Single Stage Single-Phase/Three Phase Submersible Pump  Lift dirty water which is not chemically aggressive to the pumpcomponents. In all cases where suspended solids up 50mm have to be dealt with.Recommended applications therefore include draining floodingin confined areas such as basements and garages, alsopumping domestic waste from homes, commercial premises or farms and removing waste water from process plants, factories, building sites or mines, etc. Application 1. Tank filling2. Agricultural irrigation3. Water transfer4. Industrial using5. Domestic waste water  Working Conditions  1. Suction lift up to 10 m2. Liquid  temperature up to +40°C3. Ambient temperature up to +40°C4. Max. Working pressure: 6 bar Construct Pump body: Cast IronHousing: Alloy AluminumImpeller: Brass/Plastic/SSMotor: Electric MotorShaft: 45# steel/ stainless steel weldingInsulation : Class B ( Class F if you required)Protection : IP44/IP54Cooling: External VentilationMechanical Seal: Carbon/Ceramic/Stainless Steel Warranty : 1 year(according to our general sales condition) Performance Chart   MODELPOWER(Kw)OUTLET DIAMETER(mm)VOLTAGE(V/Hz)MAX.FLOW(L/Min)MAX.HEAD(m)MAX.DIAMETER OF(mm)GW(Kg)DIMENSIONS(cm)V180F0.1840220/5015071511.518*18*36.5V450F0.4551220/502008.52518.526*19.5*50V750F0.7551220/50300122519.526*19.5*54V1100F1.150220/50400132521.527.5*22.5*56V1100SF1.151220/502337/22.556.5*30.5*25V1300SF1.351220/5030012/2559*35*25V1500SF1.551220/5044010/3559*35*25             /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
