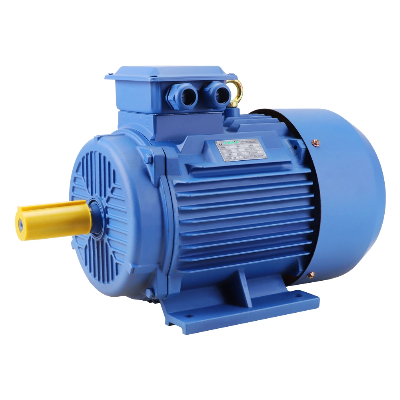

Y2-802-4 Three Phase 4 Pole Asynchronous Electric Motor

Y2 series Three-phase Asynchronous Induction Motor  Electric Motor Parts Description  1.       B5 Flange                    11.  Name Plate                   21.  Brass Net  2.       Shaft Cover                 12.  Wave Form                  22.  Brass Lug  3.       Bolt                          13.  Rear Endshield           23.  Terminal Board  4.       Spring Washer            14.  Oil Seal                         24.  Terminal Box Base  5.       Front Endshield          15.  Fan                                25.  Gasket  6.       Bearing                        16.  Fan Clamp                    26.  Terminal Box Lid  7.       Key                               17.  Fan Cowl                       27.  Screw  8.       Rotor                            18.  Washer                         28.  Earth Mark  9.       Stator                           19.  Fan Cowl Screw           29.  Jacket 10.      Frame                           20.  Brass Washer              30.  Leather Washer   Ambient temperature: -15ºC < Θ < 40ºC Altitude: not exceeding 1000m Rated voltage: 380V or any voltage between 220-760V Rated frequency: 50HZ,60HZ Protection class: IP54/IP55 Insulation class: F,H Cooling method: ICO141 Duty:S1 (continuous) Connection: Star-connection for up to 3kw, delta-connection for 4kw and above. Technical Data  TypePower (kw)Speed(r/min)Current IN(A)Eff.  (%)Power FactorIst/TnTst/Tn Synchronous Speed 3000 rpmY2-63M1-20.1827200.53650.805.52.22.2Y2-63M2-20.250.69680.81Y2-71M1-20.3727400.99700.816.1Y2-71M2-20.551.40730.822.3Y2-80M1-20.7528351.8377.40.83Y2-80M2-21.12.5879.60.847.0Y2-90S-21.528453.4381.3Y2-90L-22.24.8583.20.85Y2-100L-23.028756.3184.60.877.5Y2-112M-24.028958.1085.80.88Y2-132S1-25.5290511.087.0Y2-132S2-27.514.988.1Y2-160M1-211293521.389.40.89Y2-160M2-21528.890.3Y2-160L-218.534.790.90.90Y2-180M-222294541.091.32.0Y2-200L1-230295555.592.0Y2-200L2-23767.992.5Y2-225M-245297582.392.9Y2-250M-25510193.2Y2-280S-27513493.8Y2-280M-29016094.10.91Y2-315S-2110298019594.37.11.82.2Y2-315M-213223394.6Y2-315L1-216027994.80.92Y2-315L2-220034895.0Y2-355M-225043395.01.6Y2-355L-231554495.0Synchronous Speed 1500 rpmY2-63M1-40.1213100.44570.724.42.12.2Y2-63M2-40.180.62600.73Y2-71M1-40.2513300.79650.755.2Y2-71M2-40.371.12670.74Y2-80M1-40.5513951.57710.752.42.3Y2-80M2-40.752.0379.60.766.02.3Y2-90S-41.114052.8981.40.77Y2-90L-41.53.7082.80.79Y2-100L1-42.214355.1684.30.817.0Y2-100L2-43.06.7885.50.82Y2-112M-44.014458.8086.6Y2-132S-45.511.787.70.83Y2-132M-47.515.688.70.84Y2-160M-411146522.389.82.2Y2-160L-41530.190.60.857.5Y2-180M-418.5147536.591.20.86Y2-180L-42243.291.6Y2-200L-43057.692.37.2Y2-225S-437148569.992.70.87Y2-225M-44584.793.1Y2-250M-45510393.5Y2-280S-47514094.0Y2-280M-490149016794.2Y2-315S-411020194.50.886.92.12.2Y2-315M-413224094.7Y2-315L1-416028794.90.89Y2-315L2-420035995.1Y2-355M-4250148544395.10.90Y2-355L-431555695.1TypePower (kw)Speed(r/min)Current IN(A)Eff.  (%)Power FactorIst/TnTst/Tn Synchronous Speed 3000 rpmY2-71M1-60.188500.74560.664.01.92.0Y2-71M2-60.250.95590.68Y2-80M1-60.378951.30620.704.7Y2-80M2-60.551.79650.722.1Y2-90S-60.759152.2975.95.52.0Y2-90L-61.13.1878.10.73Y2-100L-61.59453.9479.80.75Y2-112M-62.25.6081.80.766.5Y2-132S-63.09657.4083.32.1Y2-132M1-64.09.8084.6Y2-132M2-65.512.986.00.77Y2-160M-67.597517.087.20.782.0Y2-160L-61124.288.70.817.0Y2-180L-61531.689.7Y2-200L1-618.538.690.40.832.1Y2-200L2-62244.790.90.84Y2-225M-63098559.391.70.862.0Y2-250M-63771.092.22.1Y2-280S-64586.092.72.0Y2-280M-65510593.1Y2-315S-67599014193.72.0Y2-315M-69016994.0Y2-315L1-611020694.36.7Y2-315L2-613224494.60.87Y2-355M1-616029294.80.881.9Y2-355M2-620036595.0Y2-355L-625045595.0Synchronous Speed 750 rpmY2-80M1-80.186300.88510.613.31.81.9Y2-80M2-80.256401.1554Y2-90S-80.376601.49624.0Y2-90L-80.552.18632.0Y2-100L1-80.756802.39710.67Y2-100L2-81.13.32730.695.0Y2-112M-81.56904.5075Y2-132S-82.27106.00780.716.0Y2-132M-83.07.90790.73Y2-160M1-84.072010.3811.9Y2-160M2-85.513.6830.742.0Y2-160L-87.517.885.50.75Y2-180L-81173025.187.50.766.6Y2-200L-81534.188Y2-225S-818.540.6901.9Y2-225M-82274047.490.50.78Y2-250M-83064.0910.79Y2-280S-83778.091.5Y2-280M-84594.092Y2-315S-85511192.80.811.8Y2-315M-87515193Y2-315L1-890 17893.80.82Y2-315L2-8110 217947.2Y2-355M1-8132 26193.7Y2-355M2-8160 31594.2Y2-355L-8200 38894.50.83Synchronous Speed 600 rpmY2-315S-104559010091.50.756.21.52.0Y2-315M-105512192Y2-315L1-107516292.50.76Y2-315L2-1090191930.77Y2-355M1-1011023093.20.786.01.3Y2-355M2-1013227593.5Y2-355L-1016033493.5FAQ   Q: What is your MOQ of this item? A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept trial sample order is OK to check quality.   Q: Is it all right to make customers'own brand name? A: Sure, we can be your OEM manufacturer with your authorization of brand.   Q: What are your payment terms?  A: 30% T/T deposit, 70% balance before shipment or L/C at sight.   Q: How long is your warranty? A: One year after receive B/L.   Q: What is the delivery time? A: 25-30 days after receiving your L/C or T/T deposit. /* Janu
