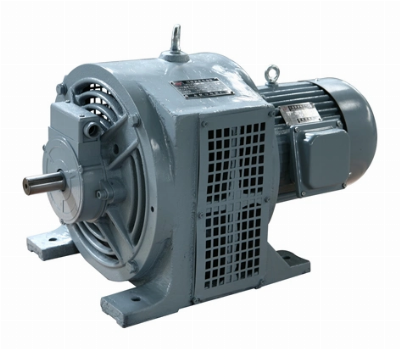

Yct Series Electro-Magnetic Speed-Regulation Asynchronous Motor

Product Description YCT series is a latest product designed conformably in whole country adopts ways of changing the excitation current size to adjust output speed. YCT series are of high efficiency, low noise, small vibration, wide range of speed-regulation, no out-of-control zone, and negative feedback of speed. Its mounting dimension and power totally conform to IEC standard and JB/T7123-93 standard.YCT series is made up of three phase asynchronous motor, electromagnetic speed differential clutch and techno-generator. It is usually associated with JD or ZTK controller to compose a set of ac unlimited adjustment devices. YCT series can be widely used in textile, printing and dyeing, cement, paper, printing, rubber, plastics, sugar, stirring, blast, fiber, cable and other industrial sectors.Technical Date                                                         Frame Size Range                                                                          H112-355Rated Power                                            0.55kw-90kwRated Voltage                                220/380V;380/660VFrequency                                            50Hz, 60HzProtection Class                                                IP23Insulation Class                                                    BSpeed Range                                             1:10                                                          Speed Variation                                                   ≤1%Voltage of Controller                                                    220V Maximum Excitation Voltage                                                    ≤90  Installation Method & DimensionsPackageFrame NO. 80--132  :Package by carton box and then packed by wooden boxFrame NO.160 and above:one wooden box per set Our Certificate   For further informations,pls visit our web page without hesitate!Contact Information:Evan Zhou hongma.en.made-in-china.com/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
