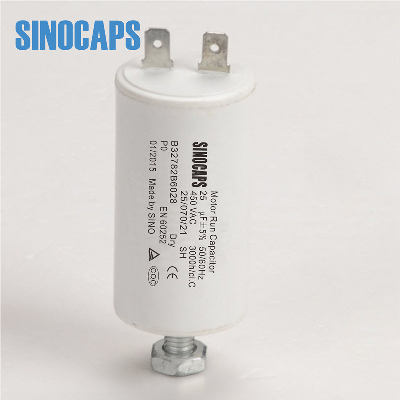

AC Motor Run Capacitor Cbb60 Motor Running Capacitors

CBB60 AC motor run capacitor:  Detailed product description:1. Used widely in motors, air conditioner, water pumps,air etc 2.High performance & Long life Capacitor. 3. Work well even in hot area Main feature:Low dissipation factor, small inherent temperature rise. Excellent self-healing stability, safety and high voltage withstand,etc.   Applications:Used widely in washing machine, water pumps, air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.  MSDS of Motor run capacitor: Capacitance Range1μF~150μFRated Voltage250VAC~500VAC(50/60Hz)Capacitance Tolerance±5% or Fulfilled upon requestLoss TangentTgδ≤0.002(50Hz-100Hz)Standard Temperature-25ºC~+70ºC,-40ºC~+85ºCClimate Class25/70/21, 40/85/21Test VoltageBetween terminalsAC≥2.00Un 2S NO BREAKDOWNBetween terminals and case AC≥2000V 2S NO BREAKDOWN Insulation ResistanceBetween terminalsRj·C≥3000MΩ.μFBetween terminals and caseRj≥1000 MΩ.μF Security LevelP0, P1, P2 Executing StandardGB/T3667.1-2005, IEC60252-1:2001, IEC252    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
