High Quality Sc Slewing Ring Slewing Drive Gear Motor Solar Power

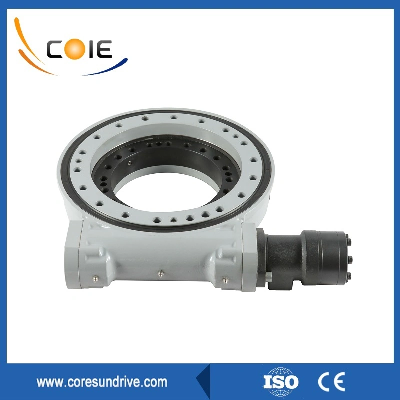

Coresun Drive single axis SC14 with  24VDC motor for PV, CPV mounting solar tracker applicationModelSC14Place of OriginChangzhou,ChinaBrandCoresun DriveTypeSingle AxisIP ClassIP65Output Torque3.4kN.mTilting Moment Torque67.8kN.mHolding Torque48kN.mColorGreyRated current≤4.5A Gear Ratio85:1Efficiency40%Slewing driver by attaching the driving member, the driving source and the casing to one of the inner and outer rings of the slewing ring, the other ring is regarded as both the transmission follower and the connecting base of the driven working member, thus utilizing the slewing bearing itself. It is the whole circumference of the characteristics of the rotary connector, efficient allocation of the drive power source and a main transmission parts, making a set of rotation, deceleration and driving functions in one and the same time simple, easy to manufacture and maintain general structure type reduction gear mechanism.Slewing drive is consist of slewing bearing,worm shaft,housing,bearing,motor and so on. Motor drive the worm shaft, the outer ring of slewing bearing will rotate, the outer ring output the torque through flange while the inner ring of slewing bearing is fixed in housing.Slewing drive is able to sustain more axial load, radial load and tilting moment.Turntable or frame rotate at azimuth and elevation driven by slewing drive.Typical applications include solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger derricks, and automotive lifts.severely workig condition.Spherical worm gear reducer rotary drive device is a new type of rotary products, usually by worm, rotary support, shell, motor and other components.As the core part adopts rotary support and enveloping worm structure, it can reach multi-tooth contact, has the characteristics of large transmission torque and smooth operation, so it can bear large axial load, longitudinal load and strong overturning moment at the same time.Compared with traditional rotating products, the spherical worm wheel rotary drive has the advantages of simple installation, easy maintenance and more space saving.The product can be widely used in the field of construction machinery and new energy, such as heavy plate transporter, container crane, truck crane, aerial working vehicle, solar power generation system and so on.SC14 single axis slewing drive for solar tracker For 40-50pcs solar panels tracking designFor 1000-2000kg load weightProduction Photo and ApplicationCoresun Drive ensure the quality of raw material and 100% finished product inspection.CONTACT USIt is sincerely looking forward to cooperating with you for and providing you the best quality product & service with all of our heart!  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
