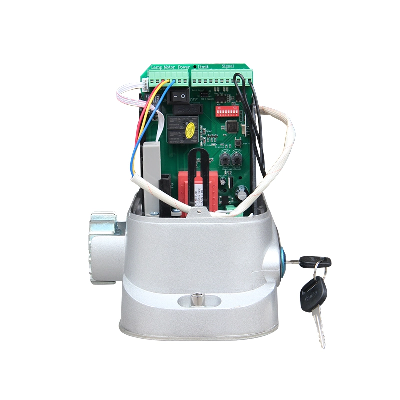

DC24V Automatic Door Sliding Motor

DC24V Automatic Door Sliding Motor Features Of The Sliding Gate Opener 1. New design and integrated control system without installing remote controller 2. Totally integrated electrical mechanical system (excludes racks) 3. Control board interface for optional impact-proof infrared photocells 4. Alarm lamp interface 5. Automatic delayed closing 6. Adjustable resistance sensitivity 7. Auto gate stop and re-open when an obstacle is encountered 8. Wireless remote control or wired remote control are optional Technical Parameter Working voltage: DC24V Frequency: 433.92MHz Communication model: ASK Max thrust: 1200N Running speed: 12M/min Max weight of door: 800KGs Storage battery technical specification: Optional Voltage: DC24V [12V*2PCS] Battery capacity: >9AH Battery model: Plumbic acid (optional) Solar power battery charging plate: Optional Voltage: Peak value 36V Power: 250W Technical ParameterInput voltage220 V±10% 50HzMotor's power200WWorking distance50mOutput gear moduleM=4Output gear numberZ=16Output rotational speed50±10%r/minOutput torque16.8-32.0N.mMax pull1200NOpen(close) speed12 m/minNet weight10KGEnvironment temperature -25ºC~ +50ºCNoise ≤55 dBa  Control boardVoltageDC24VFrequency433.92MHz(other frequency customized)VoltageASKMemory capacity10pcs rolling remote controlsFeatures:1.Automatic delayed closing2.Adjustable resistance sensitivity3.Control board interface for optional impact-proof infrared photocells4.Alarm lamp interface5.Wireless remote control or wired remote control are optional/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
