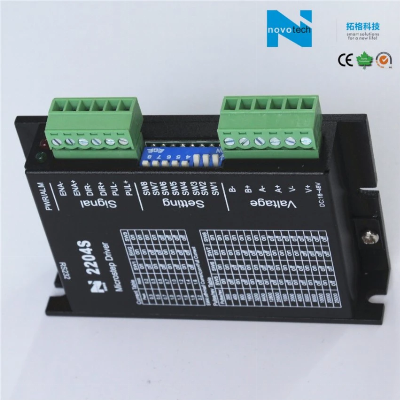

Easy Stepper Motor Driver For CNC/Textile/3D Printercan meet nema 11,14,17 stepper motorNote : All above is normally used, and we can customize according to your request or choose the suitable model for you.Character1.New 32-bit DSP technology 2.Static current can be set3.Parameter auto adjust function4.Overvoltage, undervoltage, short circuit protection5.Pulse, direction compatible with enable signal interface level 4.5-28Vdc, no external current limiting resistor6.Very low vibration noise7.Precise current control greatly reduces the motor heat8.Can set any subdivisionApplicationNovotech driver used in marking machine, cutting machine, laser phototypesetting, plotter, transmission power lines, automatic assembly and other equipments. It suitable for a lot of small and medium-sized automation equipments and instruments, has outstanding performance in the equipments that users expect small noise and high-speed.Current settingOutput peak currentOutput RMS currentSW1SW2SW30.3A0.2AONONON0.5A0.35AOFFONON0.7A0.5AONOFFON1.0A0.7AOFFOFFON1.3A1.0AONONOFF1.6A1.2AOFFONOFF1.9A1.4AONOFFOFF2.2A1.0AOFFOFFOFFHalf And Full Current Set SW4(idle)If the driver does not receive the pulse command after 200ms, then it enter the idle mode, SW4 can set the current.Current percentage as idle stateSW4 mode 50%OFF100%ONSubdivision Settingstep/Rev.SW5SW6SW7SW8DefaultONONONON400OFFONONON800ONOFFONON1600OFFOFFONON3200ONONOFFON6400OFFONOFFON12800ONOFFOFFON25600OFFOFFOFFON1000ONONONOFF2000OFFONONOFF4000ONOFFONOFF5000OFFOFFONOFF8000ONONOFFOFF10000OFFONOFFOFF20000ONOFFOFFOFF25000OFFOFFOFFOFFPackaging and shipping1.Outer packing: Standard export carton with required shipping marks2.Inner packing: Waterproof packing with shock absorbing EPE and cardboard surrounded 3.As per the clients requirementsOur service1.Working time : 8:00 a.m - 10:00 p.m .Any questions, please tell us freely, we will be reply you asap.2.Lead time : For samples, 2 to 5 days will be OK. For mass production, the lead time depend on the quantities you need.3.Warrantity period : 18 months and Life-long maintenance service for the product.4.We accept products customize.FAQQ1: How to choose the suitable stepper driver?A1: Please tell us your stepper motor's model, we will choose the suitable one according to motor's model.Q2: Any other methods to finalize the model?A2: Sure, you can send us the model you are using, we can help you find the suitable one.Q3:How to guarantee the Quality of Industrial Parts?A3: We have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.Q4:What's the Advantage of Your Parts for Industry Products? A4:1.The advantage of our products is the competitive prices, fast delivery and high quality. Ouremployees are responsible-oriented, friendly-oriented,and diligent-oriented. Our products are featured by strict tolerance, smooth finish and long service time. 2.Before we send out the goods,we check them more than three times.Contact /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
