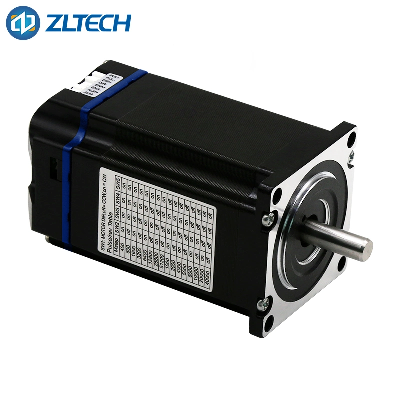

Electric hybrid nema 23 integrated closed loop stepper motor driver kitProduct DescriptionPerformance parameter ItemZLIM57-PShaftSingle shaftSizeNema23step angle1.8°Input voltage(VDC)24Output current peak(A)3Step signal frequency(Hz)200kControl signal input current(mA)10Over-voltage protection(VDC)55Input signal voltage(VDC)5shaft diameter(mm)7.5shaft length(mm)20.6Holding Torque(N.m) 2Insulation resistance(MΩ)100Service temperature(ºC)0~50Max. ambient humidity90% RHStorage temperature(ºC)-10~70Vibration10~55Hz/0.15mmWeight(g)1130Motor Length(mm)119.4Feature: Large output torque, high speed and no step loss;Low heat, low noise, low vibration and high precision and long lifespan.Integrate stepper motor and driver in one motor.Stepper Motor material decompositionDimensions (unit: mm) Motor wiringAttention: 1. When installing the motor, be sure to use the front end cover of the motor to install the stop position, and pay attention to the cooperation, strictly ensure the concentricity of the motor shaft and the load. 2. When the motor is connected to the driver, do not connect the wrong phase. Assembling processAll kinds of 2 phase integrated open loop stepper motors for choicePackaging & ShippingMotor weight: 1130gMotor length: 119.4mmPackage: carton with foam, quantity per carton will depend on the motor size.Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by train or by boat according to your requirements.Company Information 1. Brief introduction: Shenzhen Zhongling Technology Co., Ltd. is a high-tech enterprise specialized in R&D, production and sales of industrial automation transmission products; The company gathered a large number of R&D elites being engaged in motion control field for more than 10 years and constantly provide cost-effective motion control products for our partners.2. Product ranges:Robot Hub Servo Motor, Digital Stepper Driver, Closed Loop Stepper Driver, Low-voltage DC Servo Driver and Stepper Motor, Multi-axis Motion Controller etc.3. Our service philosophy: Create value for customers.4. Core value: Dedicated, innovative, virtuous, and pragmatic5. Our vision: Being the most professional brand in the field of automation control, serving the global industryAbout ZLTECH products on Exhibition:Contact: FAQ: 1. Factory or trader?We are factory, and have professional R&D team as introduced in company information.2. How about the delivery?- Sample: 3-5 days.- Bulk order: 15-30 days.3. What is your after-sales services?1. Free maintenance within 12 months guarantee, lifetime consultant.2. Professional solutions in installation and maintence.4. Why choose us?1. Factory Price & 24/7 after-sale services.2. From mold customization to material processing and welding, from fine components to finished assembly, 72 processes, 24 control points, strict aging, finished product inspection.5. Do you get the relevant certification?All products are made according to ISO9001, CE requirements. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
