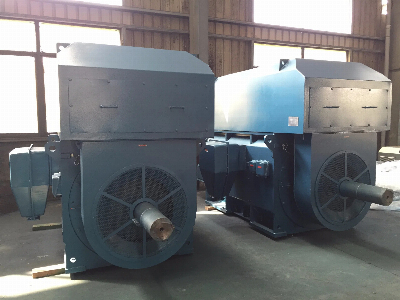

Semc Sell NEMA Tefc Motor

Technical Data Sheet Customer:Project:No.DefinitionData/unitNote1.ItemNEMA TEFC Motor 2.TypeH3N 447TS- 2 T2Z8 3.MountingB35 4.Power200 HPNEMA MC 1-20145.Service factor1.0 6.Power factor0.91 cos (p 7.DutySI 8.Voltage460 V(+/- 10%)9.Frequency60 Hz 10.Rated speed3585 r.p.m. 11.Rel. Torque399.58 Nm. 12.Current216 A 13.NEMA DesignB 14.NEMA CodeJ 15.Locked rotor current1450 A 16.Locked rated torque150 % 17.Maximum rated torque230 % 18.Efficiency - 100%95.4 % 19.Efficiency - 75%95.4 % 20.Isolation ClassF 21.Temperature rise ClassB 22.Ambient Temperature-15...+50 ,C 23.Altitude1000 m.a.s.l. 24.ProtectionIP55 25.CoolingFan Cooled - IC411 26.Bearings6316-C3 / 6316-C3SKF bearings27.HousingCast iron 28.Terminal BoxLHS viewed from DE side 29.Sound pressure level Lpa / Lwa81 / 93 dB+3 dB30.Moment of inertia J=1 /4 GD3.00 kg m2 31.Direction of rotationCW // CCW 32.Weight1003 kg 33.OriginSwitzerland 34.Additional Information3 PTC thermistor ExMotors   35.EEx type of protection  36.Certificate No.  37.Te-Time  Options / Definition   NO.Electric Furnace TypeInput power(KW)input voltage(V)Input current(A)Rated power(KW)DC current(A)DC voltage(V)Melting rate(T/H)working frequency(Hz)working voltage(V)cooling water pressure(MPa)Rated capacity(T)Power consumption(KWH/T)Power SupplyFurnace body1GW-0.25-160/1JJ180380(6 Pulse)2561603205000.2410007500.1~0.150.25~0.30.257902GW-0.5-250/1JJ280380(6 Pulse)4002505005000.4100015000.1~0.150.25~0.30.57703GW-0.5-250/1J280380(6 Pulse)4002505005000.4100015000.1~0.150.25~0.30.57704GW-0.75-400/1JJ400380(6 Pulse)6504008005000.6100015000.1~0.150.25~0.30.757705GW-0.75-400/1J400380(6 Pulse)6504008005000.6100015000.1~0.150.25~0.30.757706GW-1-500/1JJ550380(6 Pulse)80050010005000.8100015000.1~0.150.25~0.317507GW-1-750/1JJ800380/690(6 Pulse)1200/7007501500/850500/8800.91000/5001500/26000.1~0.150.25~0.31720/6608GW-1-750/1J800380/690(6 Pulse)1200/7007501500/850500/8800.91000/5001500/26000.1~0.150.25~0.31720/6609GW-1.5-1000/0.5JJ1100690(6 Pulse)912100011408801.250026000.1~0.150.25~0.31.570010GW-1.5-1000/0.5J1100690(6 Pulse)912100011408801.250026000.1~0.150.25~0.31.570011GW-2-1500/0.5JJ1650690(6 Pulse)1360150017008801.750026000.1~0.150.25~0.3267512GW-2-1500/0.5J1650690(6 Pulse)1360150017008801.750026000.1~0.150.25~0.3267513GW-2-2000/0.5JJ2200690(6 Pulse)1400200022758801.950026000.1~0.150.25~0.3265014GW-3-2500/0.5JJ2750690/950(6 Pulse)2275/170025002840/2080880/12502.565002600/32000.1~0.150.25~0.33610/56015GW-3-2500/0.5J2750690/950(6 Pulse)2275/170025002840/2080880/12502.565002600/32000.1~0.150.25~0.33610/56016GW-4-3000/0.5J3300690/950(6 Pulse)2730/204030003410/2500880/12503.25002600/32000.1~0.150.25~0.34610/56017GW-5-4000/0.5J4400950(6 Pulse)2300400033301250550034000.1~0.150.25~0.35600/55018GW-6-4000/0.5J4400950(12 Pulse)2300400033301250550034000.1~0.150.25~0.36600/55019GW-8-5000/0.5J5000950(12 Pulse)34005000420012507~850034000.1~0.150.25~0.38600/55020GW-10-6000/0.5J6300950(12 Pulse)37506000460012508.5~950034000.1~0.150.25~0.310600/55021GW-12-8000/0.25J8000950(12 Pulse)49008000600012509~10.525034000.1~0.150.25~0.312600-55022GW-15-8000/0.25J8000950(12 Pulse)49008000600012509~10.525034000.1~0.150.25~0.315600-55023GW-15-10000/0.25J10000950(24 Pulse)6500100008000125013~1525034000.1~0.150.25~0.315600-55024GW-18-12000/0.25J12000950(24 Pulse)81601200010000120015~1725034000.1~0.150.25~0.318600-55025GW-20-12000/0.25J12000950(24 Pulse)81601200010000120017~1925034000.1~0.150.25~0.320600-55026GW-25-14000/0.25J14000950(24 Pulse)94601400011600120019~21150~20034000.1~0.150.25~0.325600-55027GW-30-16000/0.2J16000950(24 Pulse)108501600013300120021~23150~20034000.1~0.150.25~0.330600-55028GW-40-20000/0.2J20000950(24 Pulse)135452000016600120025~27150~20034000.1~0.150.25~0.340600-55029GW-50-22000/0.2J22000950(24 Pulse)149322200018300120025~28150~20034000.1~0.150.25~0.350600-550Note: (1) GW - means medium frequency induction furnace, - 1 - means induction furnace capacity of 1 ton, - 500 - means furnace rated power of 500 KW, / 1 - means furnace operating frequency of 1000 Hz, / 0.5 - means melting furnace frequency of 500 Hz, - J - means hydraulic tilting furnace (furnace shell is steel shell), - JJ - means mechanical tilting furnace. (the shell of the furnace is aluminum alloy). (2) The above quoted price is for routine configuration. Other configurations can be added, such as leak alarm, water temperature alarm, furnace switch, cover mechanism, lining ejector and transformer, cooling device (open and close cooling tower, closed cooling tower, plate heat exchanger) 3) If necessary, send technicians to carry out the commissioning: the domestic section is free; the overseas section travel expenses, accommodation and food are borne by the user and each person is subsidized 150 US dollars per day. 4) I quote EX-W at a price including simple packing, including shipping charges to Shanghai port area and all inland charges in China. V) The above electric furnace voltage levels are 380V, 690V and 950/1000V, and the frequency is 50Hz. If
