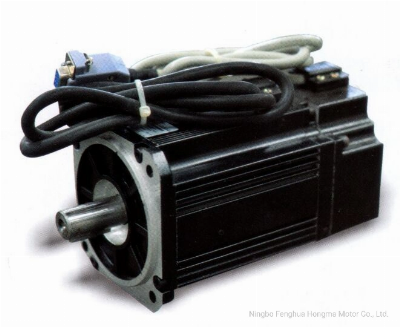

AC Permanent-Magnet Synchronous Servo Motor 380V

Performance and Characteristics: 1.Ultra-high intrinsic coercivity, high temperature rare earth permanent magnet material, strong resistance to magnetic energy. 2.Using electromagnetic design optimization, aimost with the entire speed range constant torque output. 3.Sinusoidal magnet field design, smooth low-speed torque high overload capability. 4.Class F insulation, IP55 protection structure, environmental applicability, safe and reliable use. Parameter Data (Frame 60-90) Frame size60ST-L00630A60ST-L01330A60ST-L01930A80ST-L01330A80ST-L02430A80ST-L03330A90ST-L02430A90ST-L03520A90ST-L04025ARated Voltage(three phase)220V220V220V220V220V220V220V220V220VRated Power(kw)0.20.40.60.40.7510.750.731Rated Torque(N.m)0.61.31.91.32.43.32.43.54Max Torque(N.m)1.83.95.93.97.29.97.210.512Rated Speed(r/min)300030003000300030003000300020002500Rated current(A)1.52.83.52.64.24.5334(V/Krpm)28282821.0522.7729.27516760(Ω)11.65.833.491.8580.9011.0813.24.062.69(mH)2212.238.4711.9566.5528.2979.76.21LA(mm)106131154135160181152175185Parameter Data (Frame 110-130) Frame size110ST-L02030A110ST-L04030A110ST-L05030A110ST-L06020A110ST-L06030A130ST-L04025A130ST-L05025A130ST-L06025ARated Voltage(three phase)220V220V220V220V220V220V220V220VRated Power(kw)0.61.21.51.21.611.31.5Rated Torque(N.m)2.004566456Max Torque(N.m)612151818131518Rated Speed(r/min)30003000300020003000250025002500Rated current(A)45668456(V/Krpm)23.5933.7433.8441.3930.5437.7238.6737.34(Ω)0.9820.7790.5670.640.3381.1080.8670.605(mH)2.983.0262.3162.7641.5153.763.1242.317LA(mm)158189204217217165173183Frame size130ST-L07720A130ST-L07725A130ST-L07730A130ST-L10015A130ST-L10025A130ST-L15015A130ST-L15025A Rated Voltage(three phase)220V220V220V220V220V220V220V Rated Power(kw)1.622.41.52.62.33.8 Rated Torque(N.m)7.707.77.710101515 Max Torque(N.m)23.123.123.130304545 Rated Speed(r/min)2000250030001500250015002500 Rated current(A)67.596109.517 (V/Krpm)47.5940.0332.2264.8938.7668.1334.07 (Ω)0.660.4540.2820.8010.2620.4580.102 (mH)2.831.9131.2323.6751.2582.3690.598 LA(mm)197197197218218263263 Parameter Data (Frame 150-180) Frame size150ST-L15025A150ST-L18020A150ST-L23020A150ST-L27020A180ST-L19020A180ST-L23020A180ST-L31018ARated Power(KW)3.83.64.75.5456Rated Torque(N.m)15182327192331Rated Speed(rpm)2500200020002000200020001800Rated Current(A)16.516.520.520.516.82822Max Torque(N.m)4554698157.371.679.5Voltage(V)220220220220220220220Using Environment: environment temperature -20ºC~+50ºC. Environment humidity:Relative humidity
