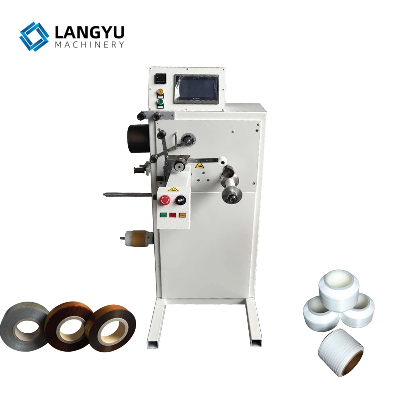

Automatic / Electronic Trapezoid Winding Machine for Tapes

Automatic / Electronic Trapezoid Winding Machine for TapesThis Machine is used for coating belt, single(double) adhesive tape, Teflon tape, aluminum plastic composite film, copper foil belt, hot melt adhesive, PET film , PET, paper tape, mica tape, insulating tape, polymide film, non-woven fabric etc on coils of rewinding strip.Features and characteristics The machine adopt touch ,screen , it can set the width of strip, the total winding width and the crossing width of the cable freely. the servo traverse speed is synchronized with the take-up speed, the lengthmeter is constant , the iline speed is running , the unwinding is automatic tension, and winding surface is smooth, high automation, simple operation and good stablility.Main technical parameters:1,Set the process parameters through the touch screen2,Automatic constant linear speed and constant tension winding3,Flat rewinding end4,Unwinding automatic constant tensionTraverse Length0-300mmWinding OD350mm MaxInside diameter76mm or otherWinding Speed 10-150M/MinTension control Air cylinderServo motor  PLC control systemProduction ProcessQuality CertificatePackage and Shipment  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
