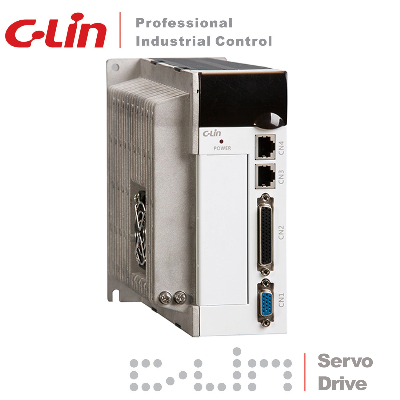

Single Phase AC 220V Servo Drive Controller Automation Servo Motor Controller

Single Phase AC 220V Servo Drive Controller Automation Servo Motor ControllerIGBT PWM sine wave drive controlServo Controllers are widely used in various high-precision motion control equipment such as various CNC machine tools, automatic mechanical equipment, automatic assembly lines, etc. With excellent quality, it is more safety, more efficient and more professional to bringing customer the highest quality product.DescriptionServo Drive Model ExplanationCDA50A1AXX C:Compay CodeD:Servo DriveA:Product Series Number050:Current: x0.1AA:Power supply specifition: A: 220V; B: 1PH/3PH 220V; C: 3PH 380V; D: 1PH 100V1:Control Mode: 1-General; 2-Analog; 3-Position pulse control; 4-General Extentable Modular;A:Encoder Type: A: Incremental 2500rpp; B: Less Wire; C: Absolute encoder; D: Rotary Encoder;XX:Special requirementServo Drive Model ExplanationCDM13020M50A2A1Z C:Compay CodeDM:Servo Motor130:Base Code: 40,60,80,90,110,130,150,18020:Power: 10: 100W; 20: 200W; 40: 400W; 60: 600W; 75: 750W; 100: 1KW; 150: 1.5KW; 300: 3KW; 550: 5.5KW; 750: 7.5KW; 1000: 10KW;M:Inertia: S-Small; L-Low; M-Middle; H-High;50:Torque (Unit: 0.1N.m)A:Speed: A: 1500rpm; B: 2000rpm; C: 2500rpm; D: 3000rpm; E: 1000rpm2:Power supply voltage: 2: 220V; 4: 380V;A:Encoder: A-Incremental encoder; B-Rotary encoder; C-Less wire encoder; D-Absolute encoder1:Shaft connection mode: 1: Straight shaft, no key; 4: Straight shaft, 4mm key; 5: Straight shaft, 5mm key; 6: Straight shaft, 6mm key; 8: Straight shaft, 8mm key; 10: Straight shaft, 10mm key;Z:Brake unit: Z: with brake unit; Without Z: no brake unit.Technical DataServo Drive Series A SeriesB SeriesC SeriesOutput power 0.1/0.2/0.4/0.6KW0.75/1.0/1.2KW1.5/1.8/2.3KW3.0/5.5KW0.75~2.3KW0.75~2.0KWDimensions (mm)167x40.5x183.5168x84x178225x114x197165x70.7x165Input power Control powerSingle Phase AC 220V, -15%~+10% 50/60HzDrive powerSingle or Three phase AC 220V, -15%~+10% 50/60HzThree phase AC 220V, -15%~+10% 50/60HzSingle or Three phase AC 220V,     -15%~+10% 50/60HzEnvironmentTemperatureWorking: 0~50ºC( Please derating when above 40ºC)      Storage: -40~+70ºCHumidity10%~90% ( No condensation)Atomospheric pressure86~106kPaVibration/Impact Withstand4.9(m/s2)/19.6(m/s2)Control Method IGBT  PWM Sine Wave DriveBrake  External Buildin External Control FeaturesSpeed response Frequency200Hz or higher;Speed Fluctuation Ratio
