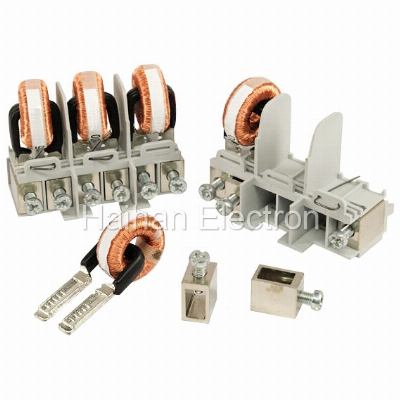

Current Transformer with 120A for Electronics Meter

1, Main characteristics 1). It adopt high magnetic permeability magnetic core, with high Precision and good linearity, and can prevent high magnetic interference. 2). Range of current: 5(120)A 3). Primary input and secondary output ensures flexible and diversified forms as well as easy installation. 4). It's can be made according to customer's special requirements (for example, with anti-DC immunity or not. ) 2, Application: Electronic energy meter. If you want to know more information for this model: H-DCT012, Please feel free to contact with us. Thank you very much for your attention.     Model              Rate Current    Max Current  Secondary    Current  Coil  Ratio  Burden ResistanceAccuracy  TemperatureHumidityH-DCT012     5A    120A        2mA  1: 2500                            10Ω  0.1Class    -40~+70º C    ≤ 95%/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
