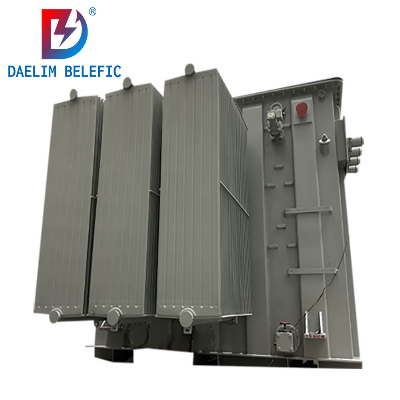

Power Transformer 30mva 69kv/115kv/230kv

Power TransformerPower transformers are a core component of power transmission system. The substation transformer used for power transmission and transformation in a unit or substation, and is also the core part of the substation. Transformers are the core equipment of the traction power supply system of electric locomotives, and also the key equipment to ensure the safe and stable operation of the traction power supply system.  Product DescriptionDesign and Manufacture Standard ANSI-IEEE 57. 12/CSA/EN/BS/GOST/AS,IEC 600761  DesignSealed-tank system /Inert-gas pressure system or Conservator-tank system without diaphragmOn load or no load voltage tap changer ONAN/ONAF/ODAF/OFAF/OFWF/KNAN/KNAF Insulation Mineral Oil Inhibited I Not Inhibited I Vegetable oil Primary voltage Up to 230kv, up to 900kv BIL Capacity Up to 240MVA Frequency 50/60 HZOperating ConditionSuitable for indoor and outdoor application. Ambient temperature:-50 ºC~40 ºCRelative humidity:ambient air relative humidity should be below93%,Altitude:≤1000mMax wind speed:≤35 m/sEarthquake acceleration:horizontal acceleration ≤0.3g    vertical acceleration≤0. 15gSpecial conditions:customized products are available.STANDARD FEATURESCapacity range:Through 60 MVA (ONAN), with high-voltage  ratings through 230 kV (900 kV BIL)Service Location: OutdoorCore: Regular grain-oriented; mitered cruciform with step-lap  constructionCoils: Cylindrical construction; all copper windings, custom tempered per design requirements; circular windings with rectangular or continuously-transposed conductor; helical low-voltage  windings;  continuous disc medium-voltage windings; shielded disc high-vollage windingsRadiators: Detachable panel type with shut-off valves; mild steelInsulating oil: mineral oil type  I & typellTank  Cover.Welded,  Bolted Manholes: On cover or tankTank Base: Flat bottom or Skid under baseTank  Material:  Mid  SteelFrequency:  60  Hertz Winding  Tem  rise:  55 ºCHV Taps; DETC, ETC in tank or out- Above rated volts: 2 x2- 1/2% off load taps of full capacity    -Below rated volts: 2 x 2- 1/2% off load laps of full capacityValve: Drain and Fiter Valves, w/Sampler                                Lifting, Moving, and Jacking FacilitiesTechnical DataTechnical Data for 69KV Class Three Phase Two Winding OLTC Power Transformer(KVA)Rated Power (KV)High Voltage(KV)Low VoltageConnection SymbolShort CircuitImpendence (%)No-load Loss (KW)On-load Loss (KW)No load Current (%)10000696.36.610.511YNd11912.147.60.751200012.656.50.531500015.169.50.492000017.984.20.492500021.199.50.423000025.11200.423750030140.30.395000035.4174.30.396000042.12100.39Technical Data for 69KV Class Three Phase Two Winding NLTC Power Transformer(KVA)Rated Power (KV)High Voltage(KV)Low VoltageConnection SymbolShort CircuitImpendence (%)No-load Loss (KW)On-load Loss (KW)No load Current (%)10000696.36.610.511YNd11911.647.60.751200013.656.50.531500016.369.50.492000019.284.20.492500022.699.50.423000026.81200.423750031.9140.30.395000038.6174.30.396000044.42100.39Technical Data for 115KV Class Three Phase Two Winding OLTC Power Transformer  (KVA)Rated Power (KV)High Voltage(KV)Low VoltageConnection SymbolShort CircuitImpendence (%)No-load Loss (KW)On-load Loss (KW)No load Current (%)100001151381616.36.610.511YNd1110.511.851.20.821200013.759.50.821500016.373.10.762000019.588.40.762500022.71050.693000027.41260.693750032.91480.635000038.91840.636000046.42210.57Technical Data for 115KV Class Three Phase Two Winding NLTC Power Transformer  (KVA)Rated Power (KV)High Voltage(KV)Low VoltageConnection SymbolShort CircuitImpendence (%)No-load Loss (KW)On-load Loss (KW)No load Current (%)100001151381616.36.610.511YNd1110.510.550.20.641200012.459.50.64150001573.10.592000017.888.40.5925000211050.5430000251260.543750029.91480.565000035.3178.50.526000041.92210.48Technical Data for 230KV Class Three Phase Two Winding OLTC Power Transformer  (KVA)Rated Power (KV)High Voltage(KV)Low VoltageConnection SymbolShort CircuitImpendence (%)No-load Loss (KW)On-load Loss (KW)No load Current (%)300002306.36.610.51134.566YNd1112301280.6937500361490.6350000431800.6360000502090.57Technical Data for 230KV Class Three Phase Two Winding NLTC Power Transformer  (KVA)Rated Power (KV)High Voltage(KV)Low VoltageConnection SymbolShort CircuitImpendence (%)No-load Loss (KW)On-load Loss (KW)No load Current (%)300002306.36.610.51134.566YNd1112281280.737500331490.750000391800.6560000462090.65Transformer TestWinding   resistanceWinding insulation resistanceCore insulation resistanceRatioPolarity and phase relationInsulation power factorControl(auxiliary) cooling lossesSingle-phase excitation testsNoload losses and excitation currentImpedance voltage and  load  lossesZero-phase  sequence   impedance  voltageTemperature   riseLow frequency dielectric testsLow frequency dielectric tests on axiliary devicescontrol, and current transformer circuitsLightning  impulseFront of wave impulseSwithing   impulsePartial dischargeAudible  sound  levelOperati
