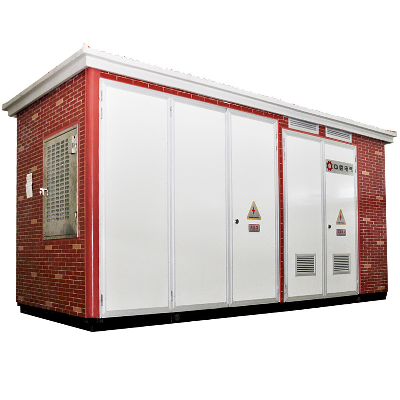

Outdoor 2000kVA Pre-Fabricated Substation for Public Distribution Network

Compact substations are self-contained units available in different designs and dimensions and cater for power supply requirements for residential and industrial consumers. Each unit comprises of three individual main assemblies, and a typical substation would include: - One hermetically sealed transformer. - One metal clad high voltage Ring Main Unit. - One metal clad low voltage distribution panel. Construction 1. Metal clad with polyethylene housing or with glass reinforced plastic housing. 2. Powder coating with excellent finish. 3. Lifting lugs for mounting the substations from the base. Easy assembly. 4. Maximum degree of protection-IP43. High Voltage Switchgear 1. SF6 insulated ring main unit circuit breaker/Fused switch. 2. Oil insulated ring main unit with fused switch. 3. Oil/SF6 insulated isolator. 4. Air or vacuum insulated fused load break switch. Low Voltage Switchgear 1. Incoming breaker or isolator up to 3200A (Motorized or manual draw out 2. Outgoing breakers/Fused switches. 3. Computerized load monitoring relays (Available on request). 4. Instrument transformers/meters from reputable manufacturers. Transformer 1. Available up to 1600kVA. 2. Hermetically sealed oil immersed transformer with corrugated fins or with radiators, or vacuum cast resin transformer. Note: For compact substations projects, it is absolutely necessary to provide detail drawings for quotation. Other compact substations. Underground prefabricated substations Combined transformers and prefabricated substations used for wind power generation. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
