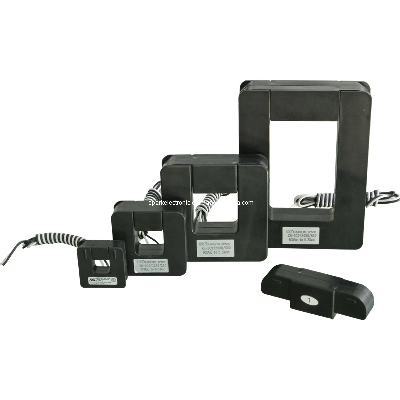

Split Core Current Transformer for Energy Consultant

Split core Current Transformer SCT XOBA 333mV Secondary  The JIANGYIN SPARK series of split core current transformer are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement. An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary Specification of Jiangyin Spark clamp ct split core current transformer   Rated Current 5A to 3000A loads. Rated output: 0.333VAC Accuracy: ± 1% from 5% to 120% of rated current Phase Angle: Less than 2 degrees at 50% of rated current Insulation Voltage: 600VAC Maximum Primary Voltage: 5000VAC(Insulated Conductor) Operating Temperature: -15Cto 60C. Frequency Range: 50-400Hz Leads: 4Foot(105cm), UL 1015, Twisted Pair, 0.34 mm2(22AWG) UL&CE recognized. RoHS Compliant Output and leads can be customized ApplicationMeasures AC current flow to electric motors, lighting, air conditioning equipment, etc.Compatible with HVAC temperature control, power management, Residential Systems ModelI. D.Rated AmpsOutputAccuracySIZE  ( mm )ABCDEXH-SCT-07500.75"(19.1mm)5, 15, 30, 50, 70, 100, 150, 2000.333V1.051.654.116.619.118XH-SCT-12501.25"(31.8mm)70, 100, 150, 200, 250, 300, 400, 6001.082.385.326.43232.3XH-SCT-20002.00"(50.8mm)400, 600, 800, 1000, 1200, 15001.012012529.652.552XH-SCT-30003.00" x 5.00"(76.2mm x127mm)1000, 1200, 1500, 2000.30001.014519930.576130Performance of split core CTs XH-sct-0750Wiring and test of split core current transformer:Package of split core current transformer:  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
