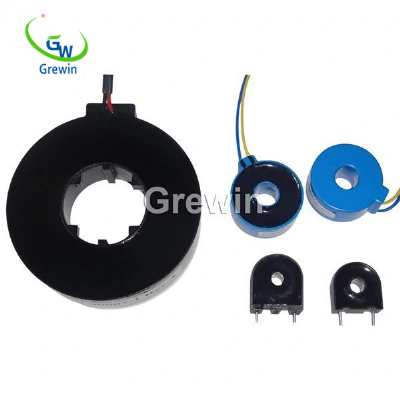

Power Monitoring Miniature Toroid Current Transformer 5-100A

Product Description30A 80A Input Micro Current Transformer with Solid Wire Super CTOur main product are miniature voltage transformer ,miniature current transformer ,instrument current transformer , clamp on ccurrent transformer ,split core current transformer ,three phase current transformer ,zero-flux current transformer    1.Product pictures  2.Features:Low costMore than 50 standard sizesNon-symmetrical mounting patternToroidal Silicon steel and Nickel Alloy available3.ApplicationsFor applications that require exceptional accuracy with minimal phase angle errorApplications would include Voltage,power and energy monitoring devices  4.SpecificationsExterior MaterialPBT Resin UL flame retardant rating 94-V0Interior InsulationEpoxy EncapsulatedIsolation Voltage2500 Vrms for 1 minuteDielectric Resistance1000 M Ohms @ 500 VdcSurge Withstand5000V(1.2/50μs standard  shock wave)optionalRated Load Resistance100K OhmsOperating Temperature-25 to +55ºC,-40 to +85ºCoptionalFrequency50 to 400 HzAccuracy Classdefined in IEC 60044-1 Part 1 Voltage Transformers Class 0.1 0.2CertificationRoHS Compliant CE Approved5.Typical Impedance Dependence of Phase and Amplitude Errors (Test temperature 25º C) 6.outline drawings7.PerformancesPart NumberRatedInputCurrent(A)TurnRatioFrequency( Hz )Secondary Burden Resistance(Ohms)AccuracyClassOutline Dimensions (mm)GWTA11115~301000:12000:12500:150 to 400≤2000.10.20.5ID-L-W-H7.0-22.0-18.0-23.0GWTA13115~80≤8000.10.20.5ID-L-W-H8.0-25.3-18.0-30.0GWTA14115~80≤8000.10.20.5ID-L-W-H9.0-31.5-20.5-33.5GWTA21A115~501000:12000:12500:13000:150 to 400≤2000.10.20.5ID-L-W-H6.9-25.0-11.6-26.5GWTA21B115~50≤2000.10.20.5ID-L-W-H6.7-23.5-11.5-25.0GWTA21CB115~151000:12000:150 to 400≤500.20.5ID-L-W-H3.6-18.0-10.0-19.0GWTA21CE11≤50ID-L-W-H5.0-17.0-9.2-16.7GWTA21CD11≤50ID-L-W-H5.0-18.0-10.0-19.0GWTA21C111000:12000:12500:1≤50ID-L-W-H4.5-18.0-10.0-20.0GWTA21CA11≤300ID-L-W-H4.5-19.0-12.5-19.0GWTA21E115~20≤2000.10.20.5ID-L-W-H5-21-13.5-21.5GWTA21F115~301000:12000:12500:13000:1≤2000.20.5ID-L-W-H6.7-23.9-12-25GWTA22B115~801000:11500:12000:12500:13000:150 to 400≤8000.10.20.5ID-L-W-H8.7-26-17.5-27.5GWTA22D115~100≤10000.10.20.5ID-L-W-H9.0-29.5-19.0-30GWTA22E115~100≤10000.10.20.5ID-L-W-H12.8-36.7-14.2-38.5GWTA23115~201000:12000:12500:150 to 400≤2000.10.2ID-L-W-H5.0-18.8-17.8-19.5GWTA23B115~801000:12000:12500:13000:15000:1≤1000.10.20.5ID-L-W-H6.0-25.0-21.5-26.0GWTA23A115~100≤10000.10.20.5ID-L-W-H6.0-34.0-22.0-36.0GWTA32B115~201000:12000:12500:150 to 400≤1000.10.2ID-L-W-H5-17.6-19.3-17.6GWTA33115~801000:11500:12000:12500:13000:1≤5000.10.20.5ID-L-W-H6.0-28.0-28.0-22.0GWTA34B115~100≤10000.10.20.5ID-L-W-H5.5-34.0-34.0-23.08.outline dimensionsCompany introduction1.certificationWe have passed ISO9001:2015,CE,SGS approval and IEC report 2.Company profile     Tianjin Grewin is concentrating on transformers for 20 Years and complianted by ISO9001:2015,CB,IEC CB,CE etc.We're always pay great attention to its business philosophy "Quality and Honesty First".Grewin is specialized in the design and manufacture of wound components such as transformer,current sensors, chokes etc .windely used in communications,electronics,meters,industrial control,medical equipments and other fields.We are also a provider of power meters and instruments locators. 85% of its products exported to America, Europe, and Asia etc.We sincerely invite you to join us to create a bright future. 3.Terms of Shipment:(1)Products are shipped via UPS / DHL / EMS / HK EMS /     FedEx / TNT and so on expresses (door to door).(2)We Provide Drop shipping Service.(3)20 days around delivery upon receiving payment if the qty    is lower than 1000PCS and it is not customized products.(4)In order to ensure you receive your order tax free upon  import, we declare lower value.(5)Shipping via EMS. UPS. FedEx and TNT express usually     takes 3~7days dependent on the destination country.4.Payment terms:(1)T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days beforedelivery.(2) By irrevocable L/C at sight, to be issued immediately against confirmed order.(3)Payment by T/T, if order amount is less than USD 20,000.5.Warranty:(1)We provide 1 year warranty.(2)If the product is defective, please notify us within 3 days of delivery.(3)All products must be returned on their original condition, in order to qualify for a refund or exchange of goods6.ProductionThe following picture showed you about all finished transformer production line and package with export standard carton and strong pallets:7.Flow chart of trading activities:NOStepDays need1Request for quotation1 day2Making quotations1 day3Offer and counter offer3 days4Sending and receiving samples3-10 days5Sample confirmation3 days6Placing a firm order1 day7Paying and receiving the down payment1-4 day8Factory production & Quality inspection15-20 days9Paying and receiving the balance4 days10Delivery of goods1 days8.Why choose us?Quality and honest first!A. Flexible service for diffierent transformers with high effic
