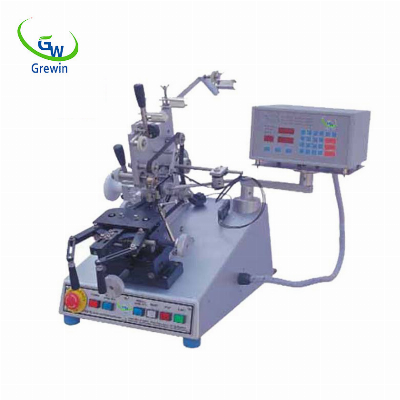

Micro Copper Wire Electric Magneto Coil Winding Machine

Product DescriptionAutomatic toroidal transformer winding machine adopt precision digital toroid controller, it's an accurately and reliability digital automatic toroid-taping machine. it is used for the insulation tape wrapping machine on the toroidal core and windings. it is best suited to toroidal inductor, toroidal transformer, toroidal current transformer, toroidal coil, toroid choke coil, power inductors, power magnetics, UPS inductor, converter inductors, heavy toroidal core,etc.Specification wire sizeO.D.RangeMin.Finished I.D.Shuttle TypeGW-9020B-B40.12-0.8mm5-60mm3mm2.4,2.5,2.8,3.4,4.7,6.3,7.9,9.5GW-9020B-B60.25-1.1mm8-60mm6mm4.7,6.3,7.9,9.5,12.7,15.6GW-9020B-S40.05-0.5mm8-60mm7mm4.7,6.3,7.9,9.5GW-9020B-S60.05-0.5mm8-60mm7mm4.7,6.3,7.9,9.5,12.7,15.6Wire Size0.05-1.1mmMax Speed1500rpm(depend on winding head)Min.Finished I.D.3mm(will be different by shuttle size and coil height)O.D.Range8-60mmSupply voltageAC 220V/110V(50/60MHz)the winding motor1/2HP DC motorStepping MotorMechanical  dimensions600*620*550mmmemory number999Weight70kgsMin.wire sizeAccording to the machine head and shuttle size Related Products1.GWM-0119 Gear type toroidal coil winding machine Wire diameter0.70-2.50Max.winding speed200rpmMax.final coil.O.Dφ60-200Wire spacingProportional linkageMin.final coil.I.Dφ40Supply voltageAC 220V(50Hz)Max.finalcoil height100Mechanical  dimensions550*500*780Controller storage capacity Programs29 (set)Weight94kgGWM-0119(winding machine/Mag.OD.400)(unit): mm2.GWM-0719 Floor type toroidal coil winding machine Wire diameter1.0-4.50Max.winding speed150rpmMax.final coil.O.Dφ250-800Wire spacingProportional linkageMin.final coil.I.Dφ80Supply voltageAC 220V(50Hz)Max.finalcoil height250Mechanical  dimensions1050x900x1530mmController storage capacity Programs29 (set)Weight383kgGWM-0719 (winding machine/Mag.OD.400)(unit): mm3.GW0950 Mobile rectangular coil winding machineWire diameter0.70-2.00Max.winding speed200rpmMax.final coil.O.Dφ65-500,55Wire spacingProportional linkageMin.final coil.I.Dφ50-430,45Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions1000*950*780Controller storage capacity Programs29 (set)Weight110kgGW0950(winding machine/Mag.OD.400)(unit): mm4.GWTM-0218  Gear type automatic wrapping insulating tape machine Tape width12(8,10,15)Max.taping speed250rpmMax.final coil.O.Dφ50-200Tape spacingProportional linkageMin.final coil.I.Dφ35Supply voltageAC 220V(50Hz)Max.finalcoil height80Mechanical  dimensions550×500×1100Controller storage capacity Programs29 (set)Weight100kgGWTM-0218 (taping machine/Mag.OD.400)(unit): mmOf course we have other models, please contact us if you need.How to select the best suited automatic toroid taping machine for your toroid coil?Tell us your toroidal coil of data as below please:1.toroid core outside diameter before winding?2.toroid core inside diameter before winding?3.toroid core height before winding?4.how many windings on this core?5.how many tape windings total on this toroidal coil?6.how about the tape width of each tape winding?7.how many turns of each tape winding?8.provide pictures of product which is better.Company Information and ProfileWe-TIANJIN GREWIN GROUP is expert in machines lines for more than 31 Years. Our Grewin have ISO9001:2015 approvals.Contect usAlice.Lee               Tianjin Grewin Technology Co.,Ltd.Web:transformer.en.made-in-china.comAddress: 2# MeiNian Plaza No.16 DongTing Road,Hexi Distr,300222,Tianjin China.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
