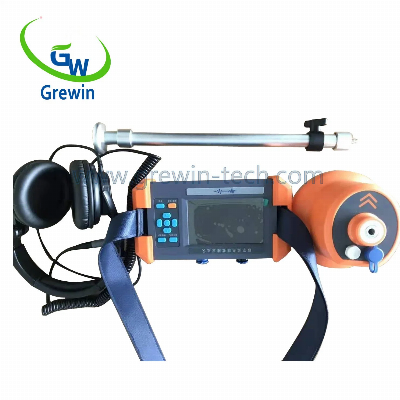

AC Telecom Acoustic Electric Cable Fault Pinpoint Locator

Product name:PCLD-904P Cable Fault Detection Instruments pinpointer cable fault locator INTRODUCTIONPCLD-904P Digital Power Cable Fault Pin-pointer is an easy operation device used to pinpoint the fault point. It integrated the function of acoustic magnetic synchronization method, the step voltage method, the magnetic field strength method to make the pinpointing accuracy. 1.DESIGN FEATHERIntegrated the function of acoustic magnetic synchronization methodAdopts background noise reduction tech. to reduce environment noiseIntelligent pinpointing method to calculate the acoustic magnetic delay valueBackground noise reduction functionAuto muting function to avoid the noiseElectronic compass function to display the included angle between cable route direction and sensor. It's very useful for quick pinpointingacoustic channel filtering parameter adjustableAuto gain adjustment function for easy use, automatic trigger by magnetic fieldHigh performance anti-noise headphone800x840 color LCD, luminance reach 800cd/m2 to make clear display under the sunPower supply management: power off automatically in 5 min. without action; Power off also when low battery voltageBuilt-in Li-ion battery2.TECH. SPECIFICATIONS1) acoustic magnetic synchronous pin-pointing:a) acoustic channell Bandwidth:all-pass: 80Hz~1500Hzlow-pass: 80Hz~400Hzhigh-pass: 200Hz~1500Hzband-pass: 150Hz~600Hzb) Signal gain: ≥80dBc) Accuracy: 0.1m2) Background noise reduction mode: support noise reduction, no noise reduction, adaptive noise reductiona) Magnification times: >80db3) Power supply:a) Battery: built-in Li-ion battery series,3.7V,6700mAHb) Continuous work time above 9 hoursc) Charger: input AC220V±10%,50Hz;output 8.4V,output 5V/2A4) Display method: 800x470 dot LCD, screen semitransparent & Semi Gloss to make sure clear display under the sun5) Size: 230mm×127mm×55m6) Weight: 230mm×127mm×55m7) Use environment: -10ºC~40ºC,5-90% RH, elevation
