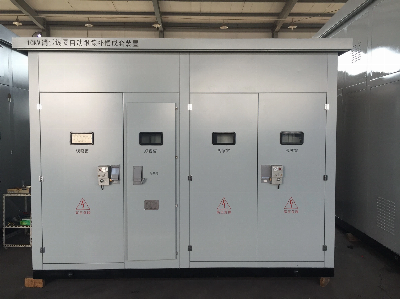

24.5 Kv Arc Suppression Coil

+++++Arc suppression coils (Petersen coil )Arc suppression coils are used to compensate for capacitive currents when ground faults occur on an electrical network. They are connected to the starpoint of the feeding power transformer or by a starpoint build by a separate earthing transformer. Arc suppression coils are continuously adjustable reactors covering: 1. Nominal network voltages from 6 kV to 145 kV 2. Rated power from 125 kVA to 30 000 kVA 3.  2 h duty time or continuous operation The basic requirements conform to the IEC 60076-6 standard. +++++Features Power range 125 kVAr - 30 MVAr Voltage range up to 145/? 3 kV Insulation level Rated voltage up to 36 k V Fully insulated or graded insulated Rated voltage > 36 k V Graded insulation Duty 2 hours short time duty Continuos duty Current regulation rang e 10 % - 100 % Rated frequency 50 Hz (60 Hz on request) Cooling method ONAN (self cooling) Installation Indoor or outdoor +++++Diagram+++++Pictures  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
