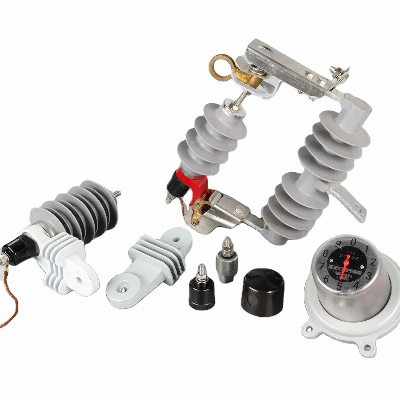

33kv Silicone Rubber Zinc Oxide Surge Arrester for Transmission Line

SERVICE CONDITIONS 1. ambient temperature of :-40ºC~+40ºC 2. altitudes of not exceeding 2000m (high altitudes areas should  indicate) 3. power frequency of 48Hz~62Hz 4. wind speed of not exceeding 35m/s 5. seismic intensity of not exceeding 7 degrees PRODUCT MODEL DESCRIPTION YH   5   W    X   -   51  /   134 YH: polymeric metal oxide surge arrester (HY being conventional type) 5: nominal discharge current (kA) W: W: gapless   C: with series gap X: indicating suitable substation line side 51: arrester rated voltage (kV) 134: maximum residual voltage under nominal discharge current (kv) GAPLESS ELECTRICAL SPECIFICATION model No.system rated voltagearrester rated voltagecontinuous operating voltageDC reference voltage(U1mA)steep wave impulse current residual voltagelightning impulse current resuidual voltageresidual pressure under operating impulse currentsquare wave discharge capacity (2ms)high current impulse withstandkV(r.m.s) >kVAkAHY5WX-17/50101713.625.057.55042.515065HY5WX-51/134355140.873.0154134114400100HY5WX-54/134355443.277.0154134114400100HY5WX-96/250669675140279250202400100HY5WX-96/250669675140279250202400100HY10WX-100/26011010078145291260211600100HY10WX-102/26511010281.6152297265225600100HY10WX-108/28111010886.4157314281239600100HY10WX-114/30011011491.2165336300255600100HY10WX-120/32011012096.0174358320272600100HY10WX-126/328110126100.8183367328279600100HY10WX-204/530220204163.2297594530450800100HY10WX-216/562220216172.8314628562478800100HY10WX-228/600220228182.4331627600510800100HY10WX-240/640220240192.0349716640544800100HY10WX-252/656220252201.6366734656558800100  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
