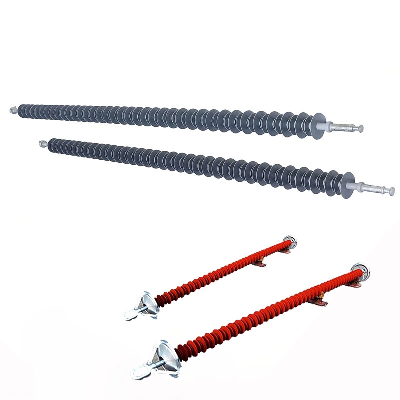

110kv 330kv Kema Certificated Polymer/Composite Silicone Tension Insulator

Application for suspension insulatorsComposite tension insulators are often used in overhead power line, working as devices to provide insulation inbetween conductor and transmission poles, with the help of hardware fittings. Main ParameterProduct ModelRated Voltage (KV)Rated Mechanicalbending load(kN)StructureHeight (mm)MinimumArc distance(mm)Minimumcreepagedistance(mm)Diameterof shed(mm)Lightningimpulsewithstandvoltage (peak kV)P.F. 1min wet withstandvoltage (kV)FXBW4-66/7066709007102140148/118410185FXBW4-66/100661009407102410148/118410185FXBW4-110/100110100124010003315148/118550230FXBW4-110/160110160132010003315148/118550230FXBW4-145/120145120148012404123148/118725355FXBW4-220/100220100224019706300148/1181000395FXBW4-330/160330160299026009075148/1181425570FXBW4-220/160(210)220160/2102320/24401970/20506300/7290148/118195/158/1281000395FXBW4-330/160(210)330160/2103480310011080195/158/1281425570FXBW4-500/160(210)500160/2104450407514860195/158/1282050740Company ProfileL&R Group Company is one of the major suppliers for transmission and distribution line materials.Almost all products have been certified by SGS, Intertek, and CNAS Lab.The main products include: Surge Arrester, Insulator, Fuse Cutout, SF6 Circuit Breaker,Air break switch, load break switch, Vacuum Circuit Breaker, Switchgear,Power Line Fittings, Preformed Guy Grips, OPGW Fittings and other transmission anddistribution products.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
