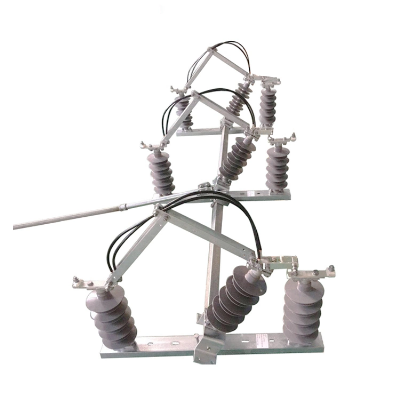

Overhead 33kv Mv Gang Opearated 630A ABS Air Break Switches

Pole-mounted Air/Load breaker switch GeneralThe air break switches install in outdoor and mainly use for switching and isolation. The air break switch is mostly installed in the distribution network as a switching point. It interrupts the small excitation current of a transmission line or the capacitive charging current. The maximum voltage for the switches is up to 35kV. The air-break switches are classified into two types. They are Single-Pole Air-Break Switch and the Gang Operated Air-Break SwitchThe (H)GW series outdoor Air/Load breaker switch is a three-phase AC 50Hz /60Hz outdoor medium-voltage switchgear, which can open and close the power line and can see the obvious disconnect distance.Application voltage levels include 12kV, 24kV and 36kV. Application standard: IEC62271-102Technical parametersItemUnitDataRated voltagekV122436Rated frequencyHz50/60Rated currentA400 / 630 Rated short-circuit withstand/breaking current kA12.5 Rated short-circuit making current (peak)kA31.5 Rated peak withstand currentkA31.5 Rated short-circuit timeSec1Mechanical Operations Times5000Power frequency withstand voltage (1 min)kV28/3250/6070/80Lightning impulse withstand voltage (peak)kV76/85125/145170/190  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
