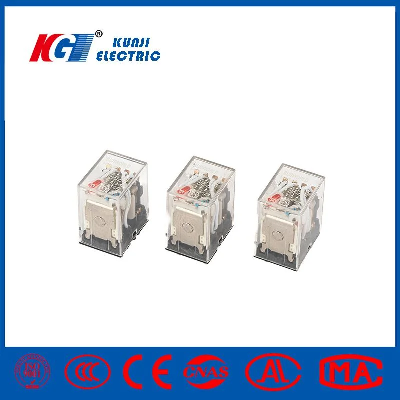

Mini Ature Electromagnetic Plug-in Relay DC/AC

Product DescriptionMini Ature ElectroMagnetic  Relay   High reliability and small sizeThe pin has good contact performance, ensure stable workingSuitable for automation equipment and electrical control cabinetsWe strive to provide you with the highest quality product and the best customer experience, if you're not entirely satisfied, please just feel free to contact us at any time.100% brand new and high quality.Small body and stable performanceTechnical ParametersModelLHH52PLHH53PLHH54PDimention(mm)27.3*21*35.2Contact Form2Z 2H 2D3Z 3H 3D4Z 4H 4DContact MaterialSilver AlloyResistance Performance Of Contactor CapacityLHH52P/53P: 5A/28VDC, 5A/240VACLHH54P: 3A/28VDC, 3A/240VACCoil Power at 23°CDC(W)≤0.9WAC(VA)≤1.2VACoil VoltageDC(V)6~220VAC(V)6~380VPick-up Voltage at 23°C DC≤75%  AC≤80%Drop-out Voltage at 23°C  DC≥10%  AC≥30%Max Voltage at 23°C110%Contact Resistance(at 6VDC 1A)≤100mΩDielectric StrengthBetween Open Contacts≥1000VAC 50Hz/1min Leakage Current 1mAContacts Pieces≥1000VAC 50Hz/1min Leakage Current 1mABetween Coil & Contacts≥1500VAC 50Hz/1min Leakage Current 1mAInsulation Resistance(MΩ) at 500VDC≥500MΩService LifeElectrical100,000 Times(Frequency:On 1 Time/1S,Off 1 Time/1S)Mechanical1,000,000 Times(Frequency:300 Times/1min)Ambient Temperature-25°C ~ +55°CTeminal TypeInsert Type, Welding TypeSuitable SocketPYF08A PYF08A-EPYF11A PYF11A-EPYF14A PYF14A-EProduct Weight30gSame ReferenceMY2MY3MY4WORKING CONDITIONS 1. Altitude: no more than 2000m;2. Ambient temperature: -50°C~+40°C, the average value of 24h does not exceed 35°C;3. Relative humidity: no more than 50% when the highest temperature is +40°C , The maximum relative humidity is 90% (20ºC). Special measures must be taken for condensation on the product due to temperature changes;4. Pollution level: 3;5. The installation tilt angle between the installation surface and the vertical surface should not exceed ±5°, and there should be no significant vibration and impact at the installation site ;6, the main circuit using the basic categories AC-3, AC-15 auxiliary circuit or DC-13, the operating frequency (average) 15 / h.PRODUCTION DETAILSCompany ProfileKunji Electric Co., Ltd. which is specialized in producing, developing and marketing power transmission and distribution products. The company is established in 2015, which is located in Wenzhou city, Zhejiang province, China.Our main products are including switchgear, ring main unit, transformer,substation, and Other Power Transmission & Transformer. Our product has passed ISO9001 and CE certificate.We have a professional technical team which can provide you with full design solution and technical support.WorkshopCrertificationsPackaging & ShippingFAQ1. Are you a trading company or manufacturer ?    We are a professional  factory with  10 years experience in the field of High and low Voltage switchgears, Substation,transformers,cable distribution box and various electrical equipment.    Our factory is the excellent supplier of State Grid Corporation od China.2. Do you accept customized serveice ?    We offer  OEM/ODM service , can print your logo on product . our  professional technical and quotation team can provice a satisfied satisfied project according to your drawing and parameters .3. What is your MOQ?    Our MOQ is 1 piece.  4. How long is your delivery lead time ?    It depends on your  product requirement and quantity . Generally , 5~10  working days is avaliable .5. How do you solve quality problems?    Please porvide detailed photoes of quality problems.  our technical  and quality testing department  will analyse.we will make a satisfied soluton within 2 days .6. What is your payment terms ?    30%T/T in adcance,70% before shipment .  West union,L/C are also acceptable .  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
