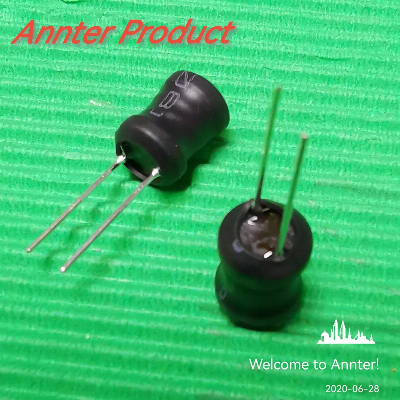

Dr0810 DIP Cheap Inductor, Inductor Coil, 1.2mh

  Product Description1. Use for Input/Output filtering on switching requlator devices and power supplies 2.Handle upto 15 Amps rms3. Custom inductance values are available Detailed PhotosProduct Parametersa. Core size from 3 to 22mm of outer diameter with different permeabilitiesb. Inductance from 1uH to 10uHc.Handle up to 15 Amps rmsd.Ideal for filtering in switch mode power suppliese.Temperature rise is 40ºC typf.Operating Temp. range -40ºC to +85ºChttps://annterbill.en.made-in-china.com/product-list-1.html  ELECTRICAL CHARACTERISTICS: 1.Inductance(1-2):10.0mH+/-10% @100KHz/0.10V     Inductance(1-2):Drop 10% Max @100KHz/0.1V with 0.29A 2.DCR(1-2): 15.5Ω Max(25ºC)            3.Operating Temperature Range:-25ºC~+85ºC 4.STORAGE TEMPERATURE RANGE: -40ºC~+85ºC Notes: 1. Material can meet Rohs 2.0 requirement 2. Material can meet UL requirement   Company Profile    Our Advantages       Annter Technology Group is a manufacturer specializing in power inductors, transformers, and wireless charger coils .We have been in this industry for over 10 years, please have a look at our website www.made-in-china.com/showroom/annterbill .Sincerely hope to establish win-win business relationship with your company.Here're 5 reasons to consider ANNTER :   1. We could customize the products for you.   2. Texture packing could be designed by our engineer.   3.  More than 15 Years experience that could meet your high quality level.   4. for the order size, we're willing to be quite flexible to meet your need.   5. We guarantee 3---5 years in all products  Welcome to our factory , thanks !/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
