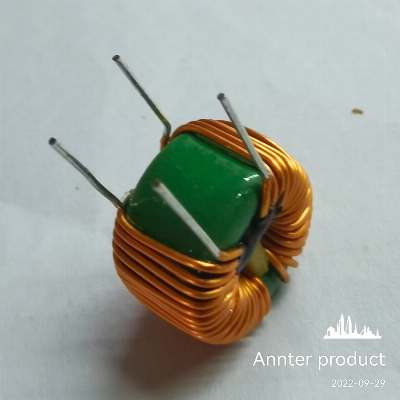

Common Mode Choke T14*8*9, 4.0mh 3A

Product DescriptionFeatures of  THT Toroidal Power Inductors1. Use in high frequency DC/DC converters2. Low radiation3.  SLow core loss4. Current handing up to 50 Amps Detailed Photos  Product ParametersElectrical Specification of THT Toroidal Power Inductors1. Core size from 7 to 18mm of outer diameter with different permeabilities2. Inductance value from 0.13 uH to 10mH3. Current ranges from 4 to 50 amps4. Very high energy storage up to 1700 micro-Joules5. Temperature rise is 40ºC typ6. Operating Temp. rang -40ºC to +105ºC ELECTRICAL CHARACTERISTICS:   1.Inductance(1-4/2-3):4.0mH Mi@10KHz/0.1V    2.DCR(1-4/2-3) :45.0 mΩ Max(25ºC)   3. Hipot Test(1-2): 1000VAC 1S 5mA    4.Operating Temperature: -20ºC ~85ºC  5. I Rating :3.0A MaxNotes:1. material can meet UL requirement2. material can meet Rohs 2.0 requirement  Company ProfileOur Advantages        Annter Technology is a manufacturer specializing in power inductors , transformers, and wireless charegers. We have been in this industry for over 15 years, please have a look at our website www.made-in-china.com/showroom/annterbill . Sincerely hope to estibish win-win business relationship with your company. Here're 5 reasons to consider Annter :     1. We could customized the products for you.     2. Texture packing could be designed by our engineer.     3.  More than 15 Years experience that could meet your high quality level.     4. for the order size, we're willing to be quite flexible to meet your need.     5. We guarantee 3---5 years in all products    Welcome to visit our factory, thank you ! /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
