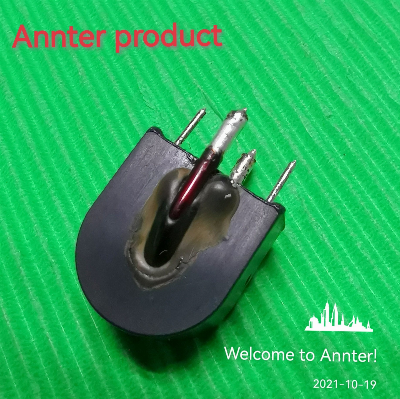

Current Transformer, Current Sensor with Primary Winding, 1: 150 15A

Product DescriptionCurrent Transformer use in electronic watt-hour meterFeatures:1. use in electronic watt-hour meter applications2. 120/240V 50/60 Hz in single and polyphase applications3. Epoxy or tape wrapped coil protection4. With high permeability permalloy,high precision,excellent linear performance,huge current load and low priceMachanical Specifications of Current TransformerDetailed PhotosProduct Parameters120/240V and 50/60 Hz applicationsDC current capability up to 150 ApkAC current up to 480 Apk for defined errorsEpoxy potted finishedWire lead through out,suitable for distance mountingElectrical strength:3000VAC 1mAInsulation resistance:500VDC≥100MΩ  ELECTRICAL CHARACTERISTICS:   1.Inductance(1-2): 35H Min @ 1.0Hz/0.25V   2.DCR(1-2): 1.5 OHMS Max(25ºC)   3.Hipot(1-3):2500VAC 2mA 1 SEC 50/60Hz    4.Operating Temperature :-25ºC ~105ºC   5.IR: >100MOhms at 500VDC   6 . Turns: 150T +/-3%Notes:1. Rohs 2.0 requirements2. All material can meet UL requirements Company Profile        Our Advantages   Annter Technology Group is a manufacturer specializing in power inductors , transformers, and wireless charegers.We have been in this industry for over 15 years, please have a look at our website www.made-in-china.com/showroom/annterbill .Sincerely hope to estibish win-win business relationship with your company.Here're 5 reasons to consider Annter :     1. We could customized the products for you.     2. Texture packing could be designed by our engineer.     3.  More than 10 Years experience that could meet your high quality level.     4. for the order size, we're willing to be quite flexible to meet your need.     5. We guarantee 3---5 years in all products      Welcome to Annter , thank you ! /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
